Ea230 Manual Lifting Pneumatic Mixer Can Stri Medicine Liquid, Motor Oil 50L
| US$208.00-220.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
EA230
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical, Paint, Oil, Food, Cosmetic
Certification
ISO
Condition
New
Mixing Capacity
50L
Mixing Drum Shape
Single Strut
Speed Control
0-1100 Switch (Can Be Variable Speed)
Stirring Type
Pneumatic
Working
Mixer
Shaft Dimension
D12* L230mm (Stainless Steel)
Blade Material
Stainless Steel
Power
0.6 MP
Rated Air Consumption
180L/ Min
Operating Type
Cycle Operating
Mixer Type
Pneumatic
Layout Type
Hand Held
Used in
Flammable and Explosive, Dust, Overloading, and W
Transport Package
Carton Box
Specification
EA230
Trademark
WT
Origin
China
HS Code
8479820090
Production Capacity
3000PCS/ Month
Product Description

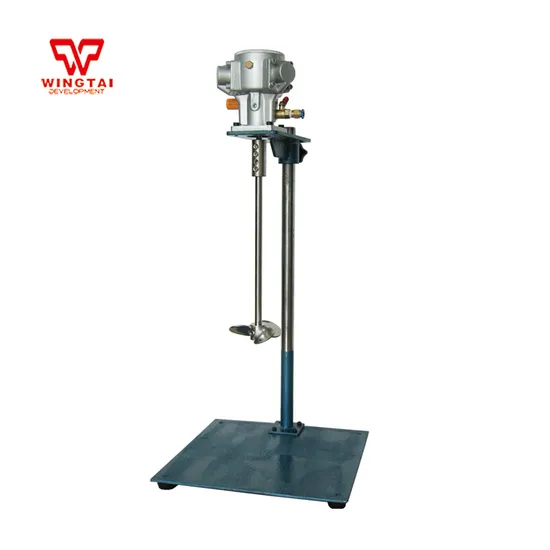

Product DescriptionEA230 manual lifting pneumatic mixer, is a horizontal plate on a single pillar to move up and down to complete the lifting function, fixed with screws against the pillar, and with a fixed bucket clamp to achieve the bucket in the mixing process to avoid displacement. Air motor inlet ball valve to control the speed of air motor speed (to achieve stirring speed controllable).
Air Motor features:
1. Not heated with long time working, long performance life, explosion-proof, not effected by high temperature and shake.
2. Speed stepless adjustment; adjust air pressure to control the rotate speed.
3. Can be worked with full with lower temperature.
4. Load overweight or stuck when the motor does not heat damage, and can load start.
5. Humid or dusty places can still be used normally.
Optional air motor suggestions: the case of certain horsepower, torque, slow speed applications that require large load; torque is great for a small speed fast rotation.
ApplicationApplication range: mixing paint, ink, oils, resins, asphalt, molasses, liquid medicines, motor oil, paints, dyes and other materials.
Product Parameters
| Max mixing volume: | 50L |
| Motor Type: | EMH010 (option according to viscosity and volume) |
| Rated Power: | 0.1HP (option according to viscosity and volume) |
| Rated air pressure: | 0.6 MP |
| Rated speed: | 0-1100 switch (can be variable speed) |
| Rated torque: | 0.64N.m |
| Rated Air Consumption: | 180L/min |
| Mixer Paddle: | A~ S (option according to viscosity and volume) |
| Motor Weight | 1.8kg |
| Shaft length: | Φ12 * 230mm (according to viscosity and volume to option) |
