High Precision Multifunctional Grinder CNC Grinding Machine for Long Axis

Product Description

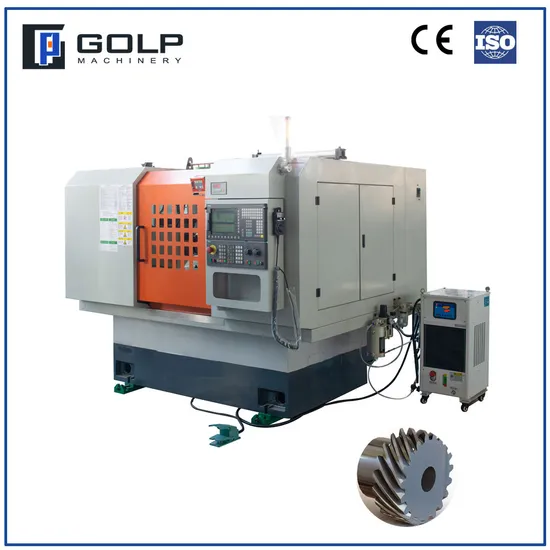

MKF2120 CNC Multifunction Grinding Machine Tool. Once Clamping, It Can Finish Internal, External, End Face Grinding.

1	ID grinding scope	20-200mm
2	Max. Grinding depth	200mm
3	Max. Grinding OD scope	30-300mm
4	Max. Grinding length	200mm
5	Motor power of work piece	2.2( KW)
6	Servo motor power of X axis	11(NM)
7	Z1,Z2 axis servo motor power	11(NM )
8	Motor power of grinding wheel 1	4(KW)
9	Motor power of grinding wheel 2	7-22( Kw)
10	Motor rotating speed of grinding wheel 1	2800(r/min)stepless speed regulation
11	Motor rotating speed of grinding wheel 2	1000--24000(r/min)Stepless speed regulation
12	Work piece rotating speed	0-600(r/min)Stepless speed regulation
13	Positioning accuracy of X Z1 Z2 axis	5 ( um )
14	Repeat positioning accuracy of X Z1 Z2 axis	2 ( um )
15	Max. Stroke of X axis	550 ( mm )
16	Max. Stroke of Z1 Z2 axis	450 ( mm )
17	Max. Moving speed of X axis	10 ( m/min)
18	Max. Moving speed of Z1 Z2 axis	10 ( m/min)
19	Size of machine tool	3000 x2800 x 2700( mm )
20	Weight of machine tool	6800(KG)
21	Rated power(about)	28(KW)
Processing accuracy
1	ID/OD roundness	2( um )
2	ID/OD cylindricitiy	3 ( um )
3	ID/OD concentricity	3 ( um )
4	Surface roughness of ID/OD	Ra0.4 ( um )
5	Perpendicularity of inner hole, outer circle and end face	4 (um )

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q:What are your normal lead times?
A: Normally, 30 to 60 days
Q:What kind of package do you offer?
A: Standard wooden case packing
Q:How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
