Basic Info.
Voice Service
With Voice Service
Installation
Wall-Mounted
Touch Keyboard
Numeric Keys
Network
Static/Pppoe/DHCP
Transport Package
Paper Box
Production Capacity
10K/Month
Product Description
SIP Video Intercom System
An Easy + Simple way to build your video intercom system, only with a network cable!
Smart SIP Intercom + Touch Screen Indoor Station
Q53W is a 7-inch color touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance

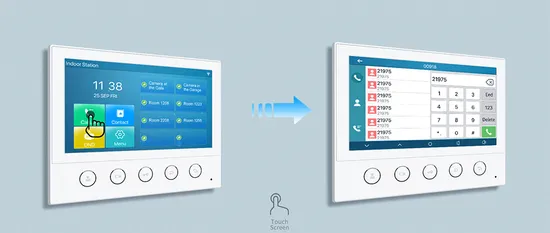

Easier Operation
With a clear touch screen, Q53W offers a direct access to all key functions at your fingertips,providing a smoother operation experience for the users
A reliable video intercom: Waterproof+Anti Strike+Night Vision
Q514 is one professional solution for SIP video intercom, Broadcast, Paging, Door Phone with large volume, can be easily configured for: bank, schools, apartment, cities, parking station, building entrance, etc. (even without server/PBX), also a good solution as SOS caller, Emergency Intercom for industrial, public garden, villa etc.
Features in Q514 Video Intercom
5 DSS Keys available on Q53W Indoor Station
Also support 2.4G WiFi connection (Q53W only)
Most simple Intercom System, HD video+Night vision+Unlock remotely
Easy configure via web browser (any question just ask us to guide)
Easy Network Configuration (support None-server mode)
One Q53W indoor station able to work with multi Q514 video intercoms
Datasheet for Intercom System
|
Q514 Video Intercom
|
| Q53W Indoor Station
|
Generic
|
| Generic
|
2 SIP Lines
|
| 6 SIP Lines
|
Full-duplex handsfree(HF)
|
| PoE or 12V1A DC
|
Intelligent DSS Keys (Speed Dial/intercom etc)
|
|
|
Auto answer, Intercom function
|
| Display
|
Industrial Standard: IP65&IK10, CE/FCC
|
| 7-inch 800x480 tft LCD
|
|
|
|
Video
|
| Audio
|
Sensor: 1/2.7" color CMOS
|
| Full duplex hands free with AEC
|
2 Megapixels, Video codec: H.264
|
| DTMF:In-band,DTMF-Relay (RFC2833)
|
Resolution: main stream 1280×720@25fps
|
| Narrowband codec: G.711A/U, G.729AB, iLBC
|
Viewing angle: 112° (H), 84° (V)
|
| Wideband codec: G.722, Opus
|
Night vision support
|
|
|
|
| Video
|
Protocols
|
| Hardware video decoding: H.264
|
SIP2.0 over UDP/TCP/TLS
|
| Video: QVGA / CIF / VGA / 4CIF / 720P / 1080P
|
RTP/RTCP/SRTP/STUN, OpenVPN, TR-069
|
|
|
DHCP/LLDP/PPPoE/802.1x
|
| Protocols
|
|
| SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
|
Audio
|
| RTP/RTCP/SRTP
|
Narrowband Codec: G.711a/u, G.723.1,
|
| STUN, OpenVPN, TR-069
|
Wideband Codec: G.722
|
| DHCP, IPv6, PPPoE, L2TP
|
|
|
|
Physical Specifications
|
| Physical Specifications
|
1 DSS button (speed dial button)
|
| 5 Function keys
|
1 RJ45 port
|
| Wall-mount Bracket x1
|
1 audio output interface,1 record output interface
|
| RS485 Interface x1
|
2 relays: MAX DC30V/2A, AC125V/0.5A
|
| Alarm Input Interface x8
|
2 indoor magnetic switch, 1 tamper alarm switch
|
| Power: PoE or DC 12V/1A
|
Power: DC12V/1A or PoE
|
| Working Temperature: 0~45ºC, Working Humidity: 10~90%
|
Protection level:IP65 and IK10
|
| Color: White
|
Material: aluminum, Installation: Wall-mounting
|
| Installation:
|
Working temperature: -40 ~ 70°C
|
| 1) Wall-mounted
|
Relative humidity: 10% - 90%
|
| 2) Desktop (Need to purchase stand separately)
|
Equipment Dimension: 195x120x34mm
|
| Device Dimensions: 176x104x26.5 mm
|
Packing Dimension: 260x165x62mm
|
| Gift Box Dimensions: 193x152x39 mm
|
Equipment weight: 1.1kg
|
| Equipment weight: 0.7kg
|
