Direct Shear Test of Soil/Shear Strength of Soil by Direct Shear Test

Product Description

Product Description

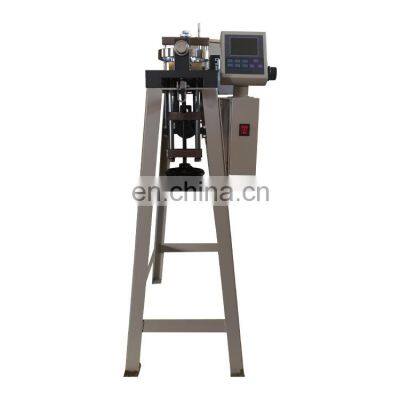

ZJ Strain Controlled Direct Shear Apparatus Usage OverviewThis instrument is mainly used to determine the shear strength of the soil. Four soil samples are usually used. Under different vertical pressures (400Kpa, 300Kpa, 200Kpa, 100Kpa, 50Kpa optional), apply horizontal force to shear to obtain the shear stress at failure, and then determine the shear strength parameters and internal friction of the soil according to Coulomb's law Angle and cohesion. (Executive standard:T0140-1993/T0141-1993/T0142-1993/0143-1993/T0176-2007 in JTG E40-2007).Product nameZJ Strain Controlled Direct Shear ApparatusVertical graded loading50, 100, 200, 300, 400kpaSample area 30cm², height 200mmMaximum horizontal load 1.2KNLeverage ratio1:20Size830*530*1260mmWeight85kgDetailed ImagesThe transmission mode is changed from the original DC servo motor to a compact stepper motor, the motor power supply is changed from the original 220V to 24V safe voltage, and the force point of the lever is improved from the original knife-edge type to the bearing type. This instrument is safer, more sensitive, Small, more applicable, and lower noise. Therefore, the use of this instrument lays a good foundation for laboratory automation.Packing List1.53kg Weight3pcs0.765kg Weight1pchanging plate（0.765kg）1pcRing knife（φ61.8）1pcSteel ball14pcUser Manual1pcMeasuring force ring verification diagram1pcContainer tryout（30cm²）1 setForce ring1 setTable clamp column1pcTable clamp column1pcφ61.8Permeable stone2pcs Carpenter's square1pcUnpacking displayPacking & Delivery · Tianjin port or Qingdao Port deliver by sea and Also can ship by air via express companyOur AdvantagesInstallation and training · If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face. · Without visiting, we will send you user manual and video to teach you to install and operate.After Service · One year guarantee for whole machine. · 24 hours technical support by email or callingAny questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated.our customerCompany Profile Cangzhou Lovely Technology Co.,Ltd. is a professional manufacturer specializing in Testing Equipment, Universal Testing Machine , Asphalt Tester, Test Moldsand, Soil Road Lab Tester ect. We supply verious type of products ..... We assure high quality to you. · All our products are made in China .Excellent quality with competitive priceFAQQ1: Are you a factory or trading company? A: We are a factory specializing in manufacturing all kinds of scaffolding material. Besides, we could also purchase products as request. Q2: Where is the loading port?A: Tianjin port or Qingdao Port.Q3:How to choose the Transportation Term? A:Usually,we may according to your needs,we may choose the most rasonable freight,thento select for you. Q4: What certificates do you have? A: We have ISO 9001, CE, SGS. Q5: Do you have an OEM service?A: Yes. We can provide OEM services according to your requirements.Q6: What are the payment terms?A: T/T payment is preferred and other could be accepted, such as L/C, D/P, Western Union, PayPal etc. It is negotiable.Related Products
