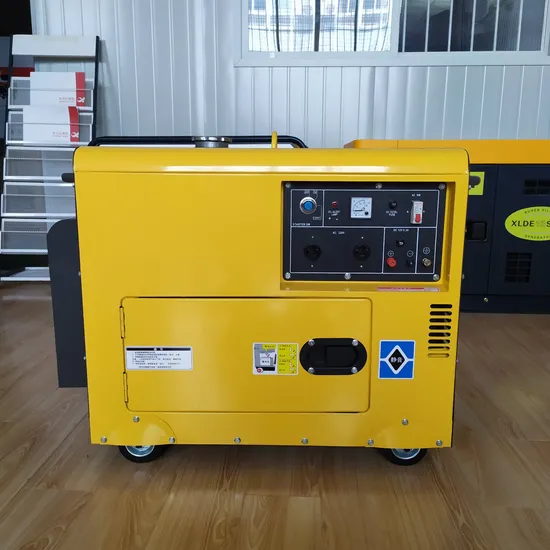

11kw 11kVA 230V/400V Diesel Power Electric Generator in Dubai Turkey Generator
| US$525.00-920.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
Diesel Generator
Type
Self-Starting Diesel Generator
Installation Method
Portable
Stroke
Four Stroke
Cooling Method
Air Cooled
Output Type
AC Single Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit
Low Noise
Excitation Mode
AC Rotating Exciter
Max. Power
5kw-20kw
Starting System
12V Electric System
Alternator
100% Copper
Voltage
220V/230V
Frequency
50/60Hz
Max. Current
19.6A
Pole No.
2
Fuel Consumption Ratio
275.1(G/Kw.H)
Engine Type
Single Cylinder, in-Lined, 4-Stroke, Air Cooled, D
Displacement
418cc
Nosie Level
72dB(a)
Insulation Grade
F
Packing Size(L×w×h)
980*550*760mm
Gross Weight
160kg
Loading Quantity(20”/40”)
72/144 Units
Transport Package
Wooden Case
Specification
Rated Power: 5KW-20KW
Trademark
HZC
Origin
Chongqing, China
HS Code
8502110000
Production Capacity
50000/Year
Product Description
Detailed PhotosProduct Parameters
| Model No | JM7000TD | JM8000TD | JM9000TD | JM10000TD | JM11000TD | |
| Rated frequency | (Hz) | 50 | 50 | 50 | 50 | 50 |
| Rated power | (kVA) | 4.5 | 5 | 6 | 6.5 | 7.5 |
| Max power | (kVA) | 5 | 5.5 | 6.5 | 7 | 8 |
| Rated voltage | (V) | 230 | 230 | 230 | 230 | 230 |
| Rated current | (A) | 19.6 | 19.6 | 26 | ||
| Rated rotation speed | (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Pole No. | 2 | 2 | 2 | 2 | 2 | |
| Phase number | Single phase | Single phase | Single phase | Single phase | Single phase | |
| Excitation mode | Self-excitation and constant voltage(with AVR) | |||||
| Power factor | (COSΦ) | 1 | 1 | 1 | 1 | 1 |
| Insulation grade | F | F | F | F | F | |
| Engine model No | 186FAE | 188FAE | 192FAE | JM195FE | JM1100FE | |
| Engine type | Single cylinder, in-lined, 4-stroke, air cooled, direct-injected | |||||
| Bore×stroke | (mm) | 86*72 | 86x75 | 92*75 | 95x75 | 100x85 |
| Displacement | (cc) | 418 | 456 | 499 | 532 | 668 |
| Compression ratio | 19∶1 | 19∶1 | 19∶1 | 19∶1 | 19∶1 | |
| Rated power | (kW) | 5.7 | 6.6 | 7.6 | ||
| Lubrication system | Pressure splashed | |||||
| Lube oil brand | CD Grade Above or SAE 10W-30,SAE15W-40 | |||||
| Lube oil capacity | (L) | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 |
| Starting system | 12V Electric system | 12V Electric system | 12V Electric system | 12V Electric system | 12V Electric system | |
| Starting motor capacity | (V-KW) | 12V 0.8KW | 12V 0.8KW | 12V 1.2KW | 12V 1.2KW | 12V 1.2KW |
| Charging generator capacity | (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A | 12V 3A |
| Battery capacity | (V-Ah) | 12V 30Ah | 12V 30Ah | 12V 30Ah | 12V 30Ah | 12V 30Ah |
| Fuel consumption ratio | (g/kW.h) | 275.1 | 274 | 275 | ||
| Fuel type | Diesel: 0#(summer)-10#(winter)-35#(cold) | |||||
| Fuel tank capacity | (L) | 15 | 15 | 15 | 15 | 15 |
| Panel type | Common panel | Common panel | Common panel | Common panel | Common panel | |
| Output | Receptacle | 2-Single phase | 2-Single phase | 2-Single phase | 2-Single phase | 2-Single phase |
| Connection pole | Without | Without | Without | Without | Without | |
| DC12V output | With | With | With | With | With | |
| Nosie level(7m) | dB(A) | 72 | 72 | 72 | 72 | 72 |
| Packing Size(L×W×H) | (mm) | 980*550*760 | 980*550*760 | 980*550*760 | 980*550*760 | 1010*580*820 |
| Gross weight | (kg) | 160 | 170 | 180 | 190 | 200 |
| Loading Quantity(20"/40") | (PCS) | 72 /144 | 72 /144 | 72 /144 | 72 /144 | 66/138 |
Our Advantages
FAQ 1.Q:Are you a factory or trading company?
A:We Have own factory,our company is factory+trade.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Xiejiawan,Chongqing , China .All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples,but need our costomers afford freight.
4.Q:How does your factory do regarding quality control?
A:Quality is our soul. We always attach great importance to quality controlling from the very beginning to the very end.
