Photoelectric Smoke Detector Fire Alarm

Product Description

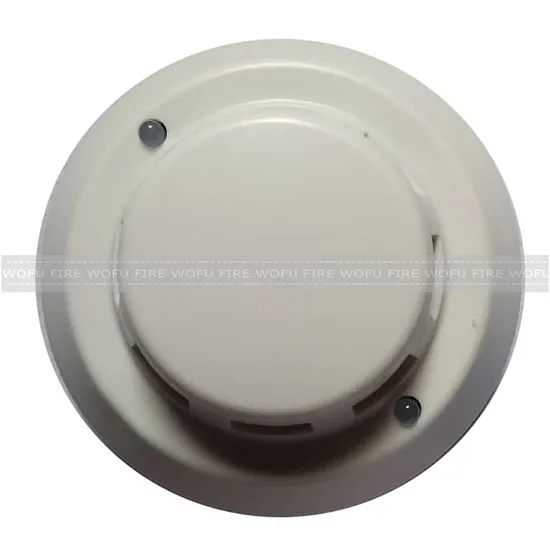

photoelectric smoke detector

1.Product introduction:

This product named photoelectric detector(hereinafter called detector),detectors the smoke by a couple of infrared diodes.The principle of detecting is granule in the smoke can reflect infrared light.Infrared diodes are placed in the special chamber.The chamber can shield external light,but don't affect the smoke into it.While have no smoke, the diode can receive very weak infrared light.When the smoke entering the chamber,diode can receive more and more light,when the smoke attains the certain density,the detector can give out alarm signal.In order to reduce the interference and lower power consumption,the emitting circuit adopts the pulse signal.The detector adopts the special structure design and ASIC,has the dustproof,mothproof and anti outside light interference feature and etc.The detector is suitable for detecting the smoke in house,shop,hotel,restaurant, office building,school,bank,library,computer house,storehouse and etc.

2.Smoke detector technical specification:

1. Operating voltage:DC12V
2. Consumption current: ≤ 15mA
3. Alarm indication:red led on
4. Temperature range: -10°C to 50°C
5. Relative humidity: Less than or equal to 95%RH
6. Anti-rfi:10MHz-1GHz 20v/m
7. Detecting area:80 square meter(with the installation height of 6m-12m),and 60 square meter(with the installation height less than 6m)
8. Alarm output:relay output NC or NO.DC28V,100mA
9. Perfect mount system: Gasketless base allows for easy installation and positioning
10. Dust cover keeps alarm clean during construction
11. Alarm reset: Automatic or reset by power off
12. Dimension size:104mm dia.*51mm deep

3.Photoelectronic smoke detector packing:

1PC into inner box,100pcs into brown carton.

4.Many models we have,see below:
