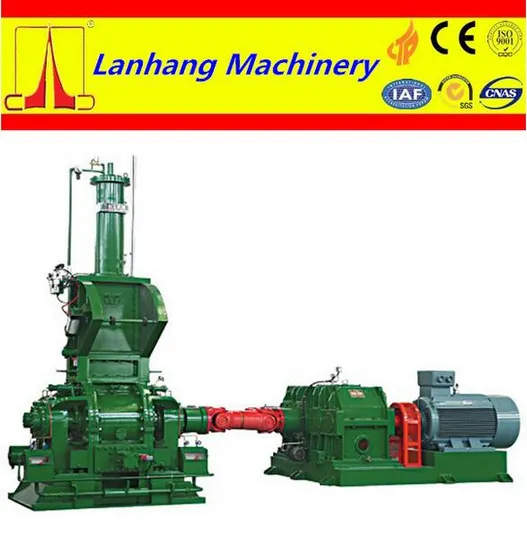

Lh-330y High Performance Banbury Internal Mixer

Lh-330y High Performance Banbury Internal Mixer

US$50,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LH-330Y
Automatic Grade
Automatic
Power Source
Electric
Type
Rubber Mixer
Condition
New
Brand Name
Lanhang
Model Number
Lh-330y
Voltage
380 V
Power(W)
1700000
Dimension(L*W*H)
1700X1400X3900 mm
Weight
80 T
Certification
CE, SGS, Laf, CNAS
Warranty Period
1 Year
Hardness of Mixer Machine Rotor
50HRC
Thickness of Abrasion-Resistant Alloy
5mm
Mixer Rotor
Tangential
Mixer Material
Cast Iron / Steel
Color
Customized
Cooling & Heating
Chamber and Rotors with Channle
Transport Package
Wood Pallet & Film Wrap (Banbury Internal Mixer)
Specification
CE, SGS, lAF, CNAS
Trademark
LANHANG
Origin
Jiangsu, China
HS Code
84778000
Production Capacity
200 Set/Sets Per Year

Product Description


Quick Details
Condition: New
Type: Rubber Mixer
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Lanhang
Model Number: LH-330Y
Voltage: 380 V
Power(W): 1700000
Dimension(L*W*H): 1700x1400x3900 mm
Weight: 80 T
Certification: CE, SGS, lAF, CNAS
Warranty: 1 year
After-sales Service Provided: Overseas service center available
Rubber Machine Name: Banbury Internal Mixer
Banbury Internal Mixer Color: Green / Blue / etc. (customize available)
Banbury Internal Mixer Material: Cast Iron / Steel
Motor for the Banbury Internal Mixer:Frequency Control or not
Banbury Internal Mixer Rotor: Intermesh Rotor
Thickness of Abrasion-resistant Alloy: 5 mm
Drive of Top Mounted Hammer: Pneumatic or Hydraumatic
Hardness of Mixer Machine Rotor: 50 HRC

Packaging Details: Delivery Detail:
Wood Pallet & Film Wrap (Banbury Internal Mixer)
90 Working Days Since Down Payment (Banbury Internal Mixer)

Specifications

Banbury Internal Mixer
1. Since 1992
2. CE,SGS,lAF,CNAS certified
3. Converter Motor & Intermesh Rotor
4. Abrasion Resistan


Product Description
Why Choose Banbury Internal Mixer Machine Products from Lanhang
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions for rubber & plastic machinery
7. ISO9001:2008 management





Main Parameters of Our Banbury Internal Mixer:

Model

LH-100Y

LH-145Y

LH-200Y

LH-250Y

LH-330Y

Chamber Volume (L)

100

145

200

250

330

Filling Coefficient

0.65

Rotor Type

Intermesh

Rotor Speed (r/min)

10-60

Rotor Speed Ratio

1:1.17

Max. Capacity (T/H)

1.36

2.2

3.05

4.2

5.0

Power Supply

AC 380V 50HZ 3P (customized available)

Motor Power (Kw)

520

720

1100

1320

1700

Weight (T)

19

29

48

65

80


Application of Our Banbury Internal Mixer
It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.

Features of Banbury Internal Mixer
Our Mixer has international standard performances. It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life.
All parts contact with the compounds are circulated through cooling water with large enough cooling area. It is equipped with water-temperature control. Which is the guarantee of quality for mixed various compounds.

Description of Banbury Internal Mixer
Driving system consists of motor and high precision hardened gearbox with drum type teeth coupling and high speed couplings. It takes many kinds of forms for changing speed: DC motor, AC motor, AC motor with converter, Hydraulic motor drive. The machine has the advantages of smooth-driving, low-noise and along service, etc. Control system adopts PLC with both manual and automatic functions with easy shift. It can realize to the control of time, temperature and energy. Signal checking, feedback as well as safety protection are provided so as to control mixing quality of compounds more effectively, to shorten assistant time and to reduce labor intensity.


Packaging & Shipping
Wood Pallet & Film Wrap ( Banbury Internal Mixer )

Our Services
Banbury Internal Mixer
1. One year warranty
2. Engineers available to service machinery overseas (installation, debugging, commissioning and maintenance.)
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. Life-long technical support
