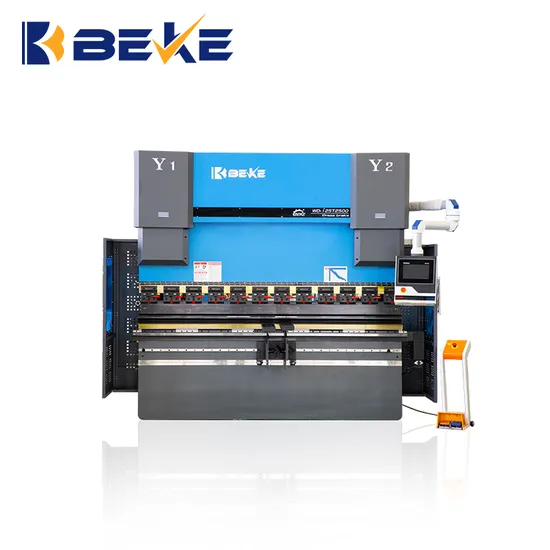

We67K-125t Hydraulic 2500mm Sheet Steel Press Brake CNC Metal Bending Machine with Da53t System

We67K-125t Hydraulic 2500mm Sheet Steel Press Brake CNC Metal Bending Machine with Da53t System

US$18,600.00
1-4 Pieces
US$17,600.00
5-9 Pieces
US$15,600.00
10+ Pieces

Basic Info.

Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
We67K 125t2500 4+1
Axes
Y1, Y2, X, R+Crowning
Servo Drive
Inovance
Control System
Da53t
Main Motor
Siemens
Siemens
3200X1820X2530mm
Transport Package
Cover with Plastic Film
Specification
3850x1850x2600mm
Trademark
BEKE
Origin
China

Product Description

Detailed Photos
Product Description Company Profile Packaging & Shipping customer Parametric
ITEM VALUE
Model WE67K 125T2500 4+1Axis
Pressure 125ton
Max bending length 2500mm
Max bending thickness for 3m sheet 6mm
Column distance 1960mm
Slide stroke 200mm
Max opening height 480mm
Throat depth 400mm
Main motor power 11kw
Machine size 3200X1820X2530mm(LxWxH)
Weight 7000kg
Axes Y1, Y2, X, R
WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity.
Electro hydraulic servo system,full loop controlling the synchronization of the upper slider.
Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision.
Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide.
Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions.
DELEM DA53T CNC System Features:
"Hot-key" touch navigation
10.1" high resolution colour TFT
Up to 4 axes (M1Y2 + 2 aux axes)
Crowning control
Tool / material / product library
Servo and frequency inverter control
Advanced Y-axis control algorithms for closed-loop as well as open-loop valves
TandemLink (option)
USB memory stick interfacing
Profile-T offline software
