New Design Mini Crusher Machine for Cow Farm Agriculture Chaff Cutter

Product Description

New design mini crusher machine for cow farm agriculture chaff cutter. Describe:
1,the structure and working principle

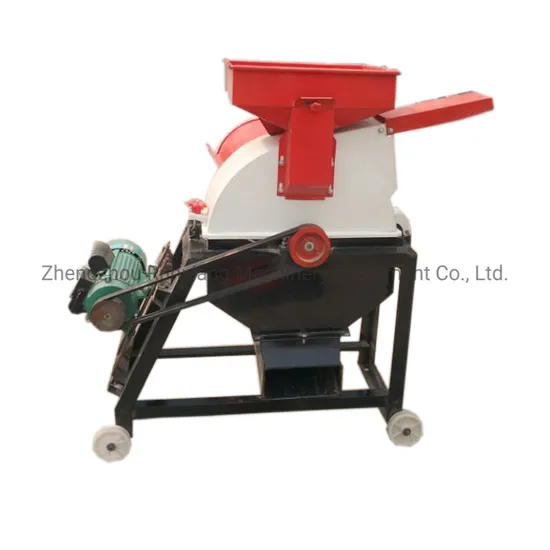

(1)The machine consists of upper shell, lower shell, discharge port, feeding hopper, angle steel shelf, hammer, cutter and so on.
(2)hen smashing, the thickness of the pulverized material is controlled by the size of the mesh hole, and different screens can be replaced.
(3)When weeding alone, the screen can be taken out.
2,stallation and commissioning
(1)The machine should be installed on a flat and strong site.
(2)Install the motor as required.
(3)Before installing the belt, check whether the direction of rotation of the indexing power is consistent with the direction of the rake machine. After confirming the error, adjust the installation belt and make the belt tight.
(4)Check and adjust the gap of the moving knife of the weeding before starting, so that the gap adjustment control is below 0.8mm, and then the bolt is locked.
(5)The adjustment of each part is normal. After confirming the error, turn on the power supply test run, check whether the fastener connection parts of each part are loose, and whether there is abnormal sound in each rotating part.

Working principle:
(1) The smashing range of sorghum is broad, including corn, soybean, wheat and other crops and various crop straws, corn stalks, huangzhucao, grass stalks, peanut husks, sweet potato stalks, and soybean sticks. (In addition to straw, ryegrass is not easy to play, too soft and easy to reel).
(2) Advantages of the product, high power and small output, simple structure, convenient operation, one person can be operated, the processing range is wide, the raw materials are not limited by the length, and the crushing size is adjusted according to the sieve.
(3) It has a wide application range and is applied to the straw crushing processing of crops and the preferred products for breeding chicken, duck, cattle and sheep.

Product details:
1. The machine consists of upper shell, lower shell, discharge port, feeding hopper, angle steel shelf, hammer, cutter and so on.
2. When smashing, the thickness of the pulverized material is controlled by the size of the mesh hole, and different screens can be replaced.
3. When weeding alone, the screen can be taken out.
Technical information:

modle	capacity	motor	size
RX-800	600-1000kg/h	2.2KW	1050*1000*1000mm

Safe operation and maintenance:
1. Before using the machine, you must familiarize yourself with the instruction manual and adjust and maintain it according to its fixed position. The operator must master the structure and function requirements of the machine.
2. The supporting power must meet the requirements, and it is not allowed to increase the spindle speed privately.
3. Check whether the running direction is the same as the cutting direction before starting the machine. Otherwise, it is strictly prohibited to start the machine.
4. Do not mix hard objects such as metal and stone in the materials that need to be cut, otherwise the machine will be damaged.
5. After the machine is turned on for several hours, it is necessary to observe whether the components are loose. The bearings must be greased regularly.
6. When feeding materials, the operator's hand is strictly prohibited from approaching the blade, so as to avoid personal injury accidents, the feeding should be even and appropriate, not too much or too little, fast and slow.
