Sj75/90/75-2500 ABC Three Layer Co-Extrusion IBC Internal Cooling up Rotary PE LDPE LLDPE Blown Film Blowing Extruder Making Machine for Plastic Packaging Bag

Sj75/90/75-2500 ABC Three Layer Co-Extrusion IBC Internal Cooling up Rotary PE LDPE LLDPE Blown Film Blowing Extruder Making Machine for Plastic Packaging Bag

US$150,000.00-325,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJ75/90/75-2500
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
2500mm
Screw Diameter
75mm*2, 90mm*1
Automation
Automatic
Computerized
Computerized
Machine Weight
29t
Certification
CE, ISO9001:2008
Film Width
2500mm
Single Side Film Thickness
0.03-0.12mm
Screw Ratio
32:1
Screw Speed
15-100r/Min
Output
300kg/H
Main Motor Power
55kw*2, 90kw*1
Die Head Size
600mm
Power
380V 50Hz 3p 400kw
Weight
9500kg
Size
8*6*12.5m
Rewinder Width
2800mm
Transport Package
Warp Film Packing
Specification
12600*9500*13500MM
Trademark
HuaRui
Origin
China
HS Code
8477309000
Production Capacity
300kg/H

Packaging & Delivery

Package Size
250.00cm * 220.00cm * 235.00cm
Package Gross Weight
29000.000kg

Product Description

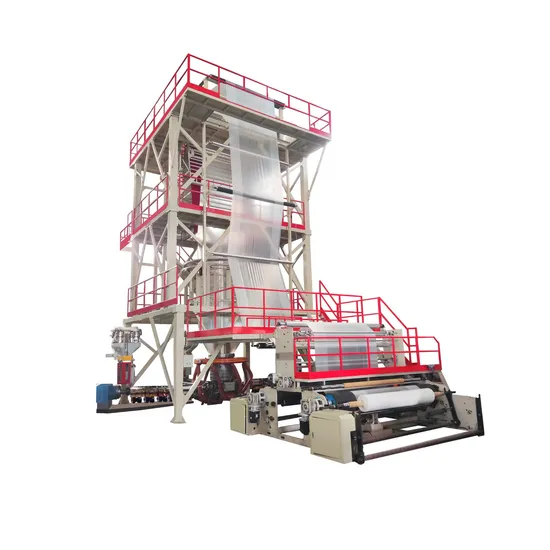

SJ75/90/75-2500 ABC Three Layer Co-Extrusion IBC Internal Cooling Up Rotary PE LDPE LLDPE Blown Film Blowing Extruder Making Machine for Plastic Packaging Bag

Usage:
This film blowing machine is applicable for the materials such as LDPE, LLDPE, HDPE, MLLDPE, etc. It is widely used to manufacture composite film basic material, liquid film, contractive film, protective film, cable film, macromolecule adhesive film, multifunctional industrial film products.
Equipment and technical composition:
This machine set is composed of three single screw extruders ,and use of three-layer co-extrusion internal cooling composite die, melt pressure sensing and other high-tech.
Plastic extruder (3 sets total)
1.1. Screw diameter φ75mm; screw L/D: 32:1; (2 sets)
Screw diameter φ90mm; screw L/D: 32:1; (1 set)
1.2. Main motor of extruder: power 55kw×2 sets, 90kw×1 set, frequency conversion speed regulation (Inovance inverter);
1.3. Screw speed: 15~100r/min
1.4. Barrel: Material: 38CrMoAlA nitriding treatment(3 sets)
1.5. Die diameter: φ600mm, gap: 2.3, working surface roughness of die head 0.4;
1.6. IBC Bubble Internal Cooling System, 10.4-inch screen;
1.7. Up traction rotary
1.8 online thickness detection control system
1.9. automatic air ring
2.0. Maximum rewind width: 2500mm, Max roll width: 2600mm
Optional :
1. Equipped with edge material online recycling machine
2. Equipped with auto Diffini weighing and loss-in-weight integrated feeding unit
3. A set of 25 hp air coolers
4. Equipped with two sets of three-phase CW-3006 type sealed discharge rack corona treaters and one set of discharge racks
5. Equipped with a set of Edge inserting system, Edge inserting depth is 630mm;
6: Equipped with Switzerland KUNDING online thickness detection control system + automatic air ring:
If you want to know more, can contact us for the detailed Configuring list
More Machine photos:
Our Certication:
Machine Packing and Delivery:
