digital flex HY-Z57 single sheet automatic screen printing machine

Product Description

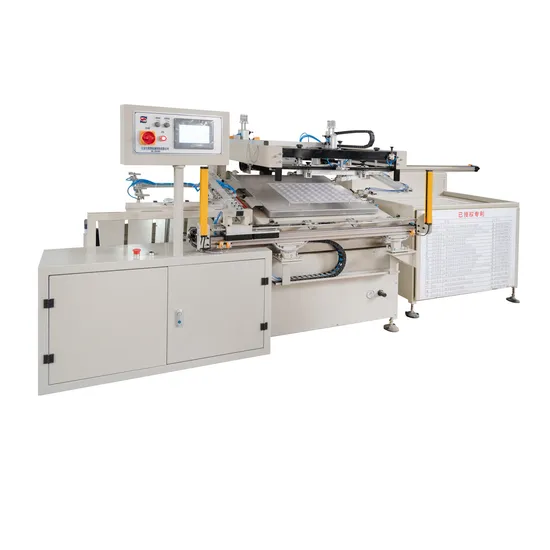

HY-Z57 Automatic Screen Printing Machine
Product Parameters

Machine Parameters

Model	HY-Z57	HY-Z69
Max. Printing Size	500×700mm	600×900mm
Printing Speed	900PCS/h	900PCS/h
Max. Screen Frame Size	800×1000mm	900×1200
Print Thickness	0-1mm	0-1mm
Printing Table Size	690×812mm	790×1010mm
Repeated Positioning Accuracy	<0.02mm	<0.02mm
Squeegee Skewness	0-30º	0-30º
Screen Vertical And Horizontal Adjustment	±5mm	±5mm
Power Supply	3N-50Hz 380V 3KW	3N-50Hz 380V 3KW
Air Source Pressure	0.4-0.6MPa	0.4-0.6MPa
Overall Dimensions	L2000×W1500×H1600(mm)	L2300×W1600×H1600(mm)
Weight	600kg	760kg

Product Description 1) The new model of the hinged semi-automatic screen printing machine realizes automatic feeding, automatic alignment, automatic printing and automatic screen printing of automatic reclaiming.
2) Chinese human-machine interface is simple and easy to learn, which not only reduces labor intensity and For the technical requirements of the operator.
3) The machine positioning replaces the manual to improve the printing stability.
4) Printing speed of 900 sheets / hour, repeat positioning accuracy is less than 0.05mm.
5) Fully automatic PLC and touch screen control operation is easy to learn, and can be equipped with tunnel dryer, UV light fixture, paper clip dryer. Suitable for transfer paper, membrane switch, packaging, signage and other industries.
6) This automatic screen printing machine is compact design. It doesn't take much space in your production facility.
7) The HY-Z57 automatic screen printing machine features high level of automation, high registration accuracy and high productivity. If interest or need further information, please feel free to contact us.
Detailed Photos

Packaging & Shipping
Certifications
Company Profile
Shijiazhuang shenghui machinery technology Co., Ltd. is a company specializing in the production and sales of automatic and semi-automatic plane screen printing machines. Out of a commitment to research and innovation of science and technology route.
Now the company has more than 20 screen printing machine invention and utility model patents, and there are new patents in the application. The new concept of automatic screen printing machine fills the technical gap and solves the problem of shortage of skilled workers. Since entering the market, it has triggered a wave of upgrading of printing equipment, which is favored by many new and old customers.
Our company's products have been served in Thailand, Vietnam, India and other customers, in 2019 the company will bring their own more mature products and services, screen printing enterprises for more countries to make beautiful products.
FAQ
