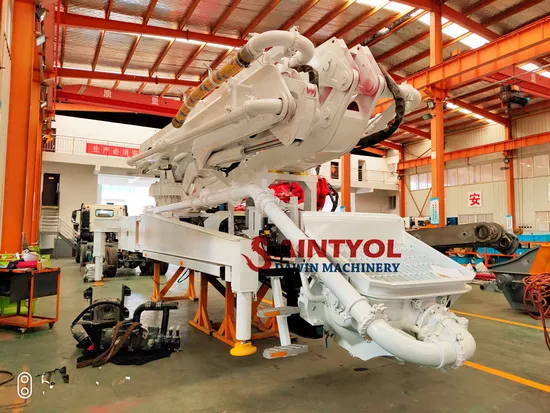

Boom Concrete Pump Truck Upper Unit Truck Mounted Beton Pump Truck Upper Kit

Product Description

boom concrete pump truck upper parts truck mounted boom concrete pump upper placing boom on sale
37m truck-mounted concrete pump is a popular small model with max. placing height 37m, with the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis, equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck is more flexible, reliable, stable and safe.
Saintyol DAWIN Machinery concrete pump trucks are competitive products designed by Saintyol DAWIN. it is high reliability, high efficiency, high security, high durability at an organic whole, which with reasonable matching on Chassis, power, electrical, hydraulic, pumping system. Jib structures are flexible, the trucks move easily, safe and stable.
Saintyol DAWIN Produce 30m to 63m concrete pump truck, full range pumping capacity and boom length to meet different meet in concrete pumping projects.CE, ISO, CCC, BV, all authorized certificates, excellent quality with favorable price, welcome contact us for detailed information.
Advantages
1. High mobility, high reliability, high intelligence, high efficiency, low cost, low maintenance cost.
2. Small size truck, could drive and work in narrow roads, widely used for small and medium projects.
3. Four or Five, Six foldable arms in M or R, Z, shape made by high strength steel, more flexible and more safe.
4. More reasonable structure and advanced technology, more intelligent and energy saving.
5. Optional truck brands, Chinese truck such as HOWO, FAW, DONGFENG, SINOTRUK, FOTON or Customized truck such as HINO.
Concrete Upper Part Drawing:
Working Range:
37m Truck Mounted Boom Concrete Pump Truck Specifications:

Model			KNL5231THB 37-5RZ
Item		Unit	Parameter
Pumping System	(/) Max. Theoretical Concrete Output (H/L Pressure)	m3/h	66/111
	(/) Max. Theoretical Output Pressure (H/L Pressure)	MPa	10/6
	Rated Working Pressure	MPa	32
	(/) Pumping Frequency (H/L Pressure)	min-1	19/32
	Hopper Capacity	L	600
	Feeding Height	mm	1200
	Hydraulic System Mode		Open Loop
	Distribution Valve Mode		S S Valve
	× Oil Cylinder Diameter × Stroke	mm	Φ125×1400
	× Concrete Cylinder Diameter × Stroke	mm	φ230×1400
	Hydraulic Oil Cooling		Air Cooling
	Recommended Concrete Slump	cm	12~23
	Max. Aggregate Dimension	mm	40
Placing Boom	Structure Type		37-5RZ
	Max. Placing Height	m	36.1
	Max. Placing Radius	m	32.6
	Max. Placing Depth	m	25.5
	Slewing Angle		±270° (540°)
	Delivery Pipe Diameter	mm	125
	End Hose Length	mm	3000
	Min. Height Of Opening Placing Boom	mm	9000
	(××) Outriggers Span (Front × Rear × Side)	mm	6140×7606×8446
Chassis & The Whole Machine	Chassis Model		ZZ5231N521GE1
	Wheelbase	mm	5200
	Engine Model		MC07.31-50
	Engine Power	KW	228KW
	Fuel Tank Volume	L	400
	Tail Gas Exhaust Standard		V EURO V
	(××) Overall Dimension (L x W x H)	mm	9840x2496x3870
Others	Lubrication Mode		Manual Hydraulic Dual Purpose Synchronous Lubricating Pump
	Hydraulic Oil Tank Volume	L	500
	Control Mode		+ Manual+Remote Control
	Max. Water Tank Pressure	MPa	0.8
	Water Tank Volume	L	400
	Concrete Pipeline Cleaning Mode		/ Water/Dry Cleaning

Boom Concrete Pump Truck Main Parts:
Boom Concrete Pump Weighing Test Before Shipping:
Working Case
Our truck-mounted concrete pumps and other concrete machines were used in below many countries, our machines work stably and durably, give customer excellent performance.

Asia	Philippines, Indonesia, Vietnam, Thailand, Sri Lanka, Pakistan, etc.
Middle East	UAE, Saudi Arabia, Oman, etc.
Africa	South Africa, Kenya, Uganda, Congo, Tanzania, Mauritius, Nigeria, Egypt, Ghana, etc.
South America	Brazil, Argentina, Chile, Peru, Guyana, Colombia, EI Salvador and Mexico, etc.
Europe	Russia, Ukraine, etc.
Oceania	Australia, Papua New Guinea, etc.

Package & Shipping:
Job Site :
Related Concrete Pumps and Concrete Machines Stocks in our factory:
Truck Mounted Boom Concrete Pump Truck Upper Parts Customized:
