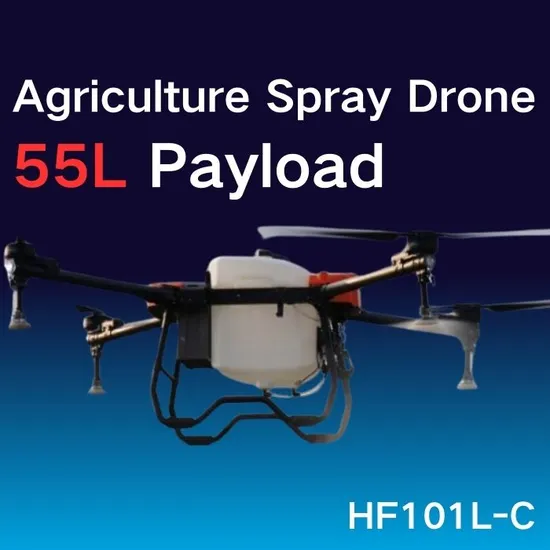

55L Agriculture Uav; Professional Industry Drone
Basic Info.
Model NO.
HF101L-C
Size
Large
Usage
Industrial
Structure
Unmanned Rotorcraft
Certification
Industrial Standard
Maximum Take-off Weight
90kg
Control Distance
2-5km
Flight Duration
35min(0 Payload)
Flight Time
8.5 Min (55kg Payload)
Product Size
3125*2920*765mm
Transport Package
Aviation Box Packaging
Specification
HF101L-C
Trademark
HFHW
Origin
China
Production Capacity
2000
Product Description
1. Product overviewHF101L-C plant protection UAV adopts the combination of advanced uav technology and plant protection technology to realize accurate farmland operation and efficient spraying. Through the ground remote control or navigation flight control system, the UAV can accurately spray agents, seeds, powder, etc., and is widely used in farmland, orchards and other agricultural planting areas.Product features:
Efficient operation: HF101L-C plant protection UAV has high operation efficiency, can cover a large area of farmland and orchards, and significantly improve the efficiency and effect of plant protection operation.
Precise spraying: Through advanced remote sensing technology and image recognition algorithm, HF101L-C plant protection uav can realize accurate spraying in various areas inside the farmland and reduce pesticide waste and environmental pollution.
Convenient operation: the UAV operation is relatively simple, and the remote control and operation can be realized through the ground remote control or navigation flight control system.
Strong adaptability: HF101L-C plant protection UAV is light in structure, flexible in operation, suitable for a kinds of terrain, landform and crop types.
2. Technical parameters
| HF101L-C Plant protection UAV | Unrolled size 3125 * 2920 * 765mm The folding size is 1090 * 800 * 935mm Wheelbase of 2,300 mm The machine arm size is 46 * 50 * 750mm The maximum capacity of the medicine cabinet is 55liters Full load takeoff weight 90kg Airmachine weight 31.1kg No-load suspension time is 35min Full-load hover time is 8.5min Full load current 190 soil 10A2. |
| dynamical system | Maximum tensile force (70V) of 44.6 Kg An 18-S LiPo battery is recommended The recommended takeoff weight is 20-22 Kg Powertrain weight is 2,800 g Pipe diameter: 50MM Rated voltage (LiPo) of 18S No-load current: 3.24 aximum current is 120 A KV values of 60 rpm / V Motor size is 20.1 * 55.2mm Number of grooves poles 36N40P Bearing model imported ball bearing (waterproof) Battery: 18S LiPo The PWM input signal level is 3.3V / 5V The working pulse width is 1050-1950s Maximum allowable voltage of 78.8V Continuous current (closed 60C) 50A Maximum current (closed <60C) 180A Diameter / pitch of 48 * 17.5 inch Bar assembly weight 397g |
