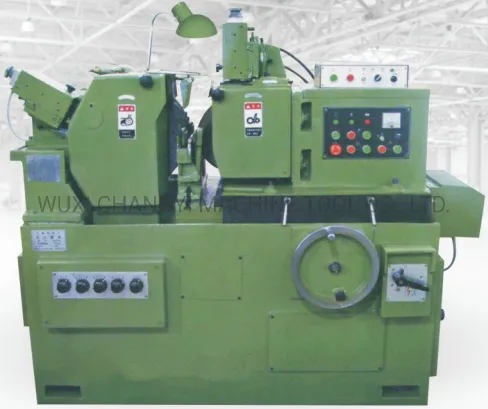

M1050A Od 50mm Centerless Grinding Machinery
Basic Info.
Model NO.
M1050A
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Grinding Diameter
0.5-10mm
Max. Grinding Length
40mm
Grinding Wheel Spec.
Psa200X50X75mm
Regulating Wheel Spec.
Psa125X50X50mm
Grinding Wheel Rotary Speed
3320 Rpm
Regulating Wheel Rotary Speed
45-240 Rpm
Machine Weight
850kg
Transport Package
Wooden Case Package, Waterproof Case Package
Specification
1550x1300x1405mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
84602990
Production Capacity
50 Sets Per Year
Product Description
M1050A Characteristic of machine tool
The grinding wheel spindle bearing is five slice dynamic sliding bearing, which has large bearing capacity and high rigidity.
The wheel spindle bearing for 1:30 intergral type sliding bearings, large bearing capacity, high precision.
The wheel frame in the horizontal direction for small angle rotation, the grinding wheel can not small taper required the whole cone, improve the utilization rate of grinding wheel and reduce the dressing time
The wheel gear adopts AC frequency conversion stepless adjustment.
Long sand, wheel dresser reciprocating adopts hydraulic transmission, stepless adjustment.
M1050A Through type specification
| Through feed | Grinding diameter | 2-50mm |
| Grinding length | 120mm | |
| Grinding wheel specification | PSA400*150*203mm | |
| Regulation wheel specification | PSA300*150*127mm | |
| Grinding wheel speed | 1668 rpm | |
| Regulation wheel speed | 20-200 rpm | |
| Regulation wheel swivel angle | In vertical plane | PSA400*150*203mm |
| In horizontal plane | PSA300*150*127mm | |
| Grinding feeding | Feed wheel feed | 0.4mm |
| Feed hand wheel feed | 0.002mm | |
| Feed of each meter of trimmer dial | 0.01mm | |
| Height from centerline of grinding wheel & regualtion wheel to work rest | 220mm | |
| Two wheel center line to bed bottom distance | 1990mm | |
| Total power of machine | 12.99kw | |
| Grinding wheel motor | 11kw | |
| Guide wheel motor | 1.5kw | |
| Hydraulic pump motor | 0.25kw | |
| Cooling pump motor | 0.12kw | |
| Lubricating pump motor | 0.12kw | |
| Machine tool connecting power | 3N-50Hz 380V | |
| Overall dimensions | 1920*1681*1479mm | |
| Machine weight | 2800kg | |
| Machining accuracy | Roundness | 0.002mm |
| Cylindricity | 0.003mm | |
| Roughness | Ra0.32um | |
