Tc30 Linear Guide Way CNC Machine Tool Turning and Milling with B Axis 6-Sided Machining Center

Product Description

Product Description

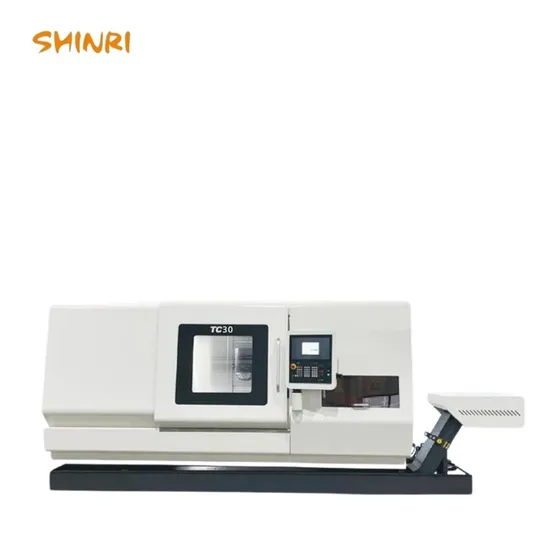

6-Sided Turning and Milling Complex Machining Center
1.Counter spindle, turning-milling spindle for 1200 mm turning length.
2.Large dimension of components (guide way size 45) for high stability and durability.
3.Powerful turning-milling spindle with torque motor for B-axis in standard.
4.Tool magazine with 24 tools.
5.Large, transparent work area with minimum required space.
Product Parameters

Item	Specification	Unit	TC10	TC20	TC30
Working area	Max. swing over bed	mm	530	700	1000
	Max. swing over turret	mm	450	630	900
	Max. turning diameter	mm	520	600	850
	Spindle surface diatance	mm	1420	2260	3260
Spindle 1, Left	Chuck diameter	mm	250	250	250
	Spindle nose	FL	170h5	220h5	FL220
	Spindle bore	mm	87	90	95
	Tie-rod bore	mm	66	75	75
	Front bearing diameter	mm	130	140	140
	Drive rated power, Max. 100/40%DC	kW	25	33.5	33.5
	Spindle speed range	rpm	4000	4000	4000
	Torque max	Nm	380	580	580
	C axis speed			200
	C axis torque	Nm	200	200	200
	Degree, minimal	°	0.001	0.001	0.001
Spindle 1, Right	Chuck diameter	mm	210	250	250
	Spindle nose		170h5	170h5	FL220
	Spindle bore	mm	87	87	95
	Tie-rod bore	mm	67	67	75
	Front bearing diameter	mm	130	130	140
	Drive rated power, Max. 100	kW	20	25	33.5
	Spindle speed range	rpm	4500	4000	4000
	Torque 40%DC	Nm	170	170	320
	C axis speed			200
	C axis torque	Nm	170	200	200
	Degree, minimal	°	0.001	0.001	0.001
Sliders	X travel	mm	500(+490,-10)	800	850
	Y travel	mm	±100	±200	±200
	Z travel	mm	1250	2050	3050
	Rapid traverse X/Y/Z	m/min	30/24/30	30/24/30	30/24/30
	Thrust X/Y/Z	kN	7.5/4.5/12	7.5/4.5/12	7.5/4.5/12
	Resolution X/Y/X	mm	0.001	0.001	0.001
	Ball screw X/Y, d	mm	040	040	040
	Ball screw Z, d	mm	050	050	050
Tool spindle	Tool holder taper		HSK63/HSK100	HSK63/HSK100	HSK63/HSK100
	Max. speed range	rpm	12000	12000	12000
	Drive rated power, Max. 100/40%DC	kW	31.5	31.5	36
	Spindle torque, Max. 100/40%DC	Nm	85/100	85/100	100/120
	Degree, minimall	°	0.001	0.001	0.001
	Max. torque	Nm	1000	1000	2800
B axis CNC	Positioning angle (continuous)		±120	±120	±120
Weight	Machine total weight	kg	11000	20500	28000
Dimensions	With E-cabinet &Chip-conveyor L×W×H	mm	5600×2250×2350	7550×3456×2393	8850×2750×2650
