US$400.00-800.00
|
1 Piece
(MOQ)
|
Basic Info.
Work Environment
Common Heat Pump
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Certification
CE, ISO9001, CCC, RoHS, SASO
Product Name
Small Capacity Heat Pump for Home Use
Maxi Outlet Hot Water Temperature
60 Celsius Degree
Expansion
Electrical Expansion Valve
Certificate
Ce Certificate
Rated Heating Capacity
3.5kw to 9kw
Type
Air Source Heat Pump
Transport Package
Plywood Case
Specification
650mm*320mm*500mm
Production Capacity
50 Units/Day
Product Description

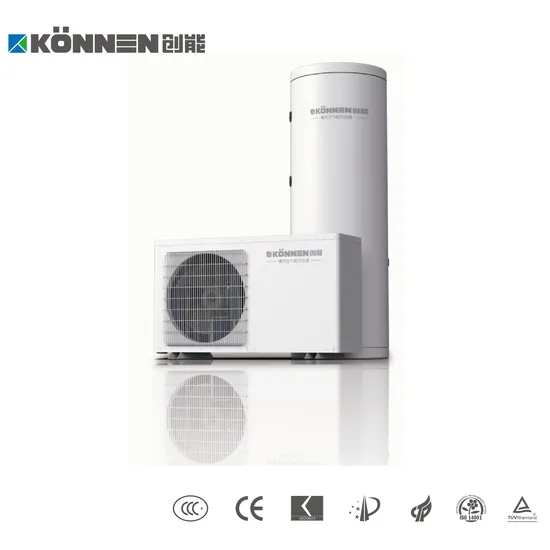

KONNEN HOME USE AIR SOURCE HEAT PUMP WATER HEATER FROM 3.5KW TO 9KW:
* Panasonic compressor and R410a refrigerant; |
* Chinese No.1 brand "ND" shell & tube heat exchanger; |
* Water pump built-in. |
* Japan "Saginomiya" electronic expansion valve; |
* LCD controller; |
* Wooden case packing for heat pump; Carton & Foam packing for water tank. |
* Delivery time: 20~25 days; |
* Payment term: T/T 30% in advance and T/T 70% before delivery; |
* Warranty time: 18 months after delivery. |
We supply OEM service!
KONNEN NEW FACTORY 2017(HEAT PUMP + WATER TANK + CONTROLLER):
WHY US:
KONNEN NEW PROJECTS:
WORLD FAMOUS BRNADS WE COOPERATED FOR OUR HEAT PUMPS:
KONNEN HEAT PUMPS FOR EXPORTING:
PARAMETERS TABLE:
A01H series (home use air source heat pump water heater circulating type) |
Model Parameter | CKXRS-3.5 IH | CKXRS-5.0 IH | CKXRS-7.0 IH | CKXRS-9.0 IH |
Rated Heating capacity (KW) | 3.5 | 5 | 7 | 9 |
Rated outlet hot water quantity (L/H) | 75 | 108 | 150 | 193 |
Outlet water rated temp (ºC) | 55 |
Outlet water max temp (ºC) | 60 |
Electricity parameter | Rated power (KW) | 0.9 | 1.24 | 1.71 | 2.26 |
Rated current (A) | 4.1 | 5.6 | 7.8 | 11.4 |
Power supply | 220V~/50HZ |
Max power (KW) | 1.28 | 1.63 | 2.26 | 3.11 |
Max current (A) | 5.7 | 7.4 | 10.4 | 14.6 |
Refrigerant | R410a |
Dimensions mm | 930*360*560 | 1000*360*630 |
Weight KG | 43 | 51 | 61 | 64 |
Waterproof grade | IPX4 |
Defend electric shock grade | GRADE 1 |
Noise Db | <=53Db | <=55Db |
Compressor | Panasonic Rotor type |
|
Pressurized Water Tank with Safety Valve |
Specifications | 150L | 200L | 300L | 500L |
Pipe size (mm) | DN15 | DN20 |
Water Tank Size | φ480 x 1460 | φ500 x 1540 | φ570 x 1720 | φ700 x 1940 |
Installation | floor standing type |
Concurrent User | 3-4 people | 4-5 people | 6-8 people | 10-13 people |
Remarks: 1.Testing condition:use side initial water temperature:15ºC,end water temperature 55ºC, dry-bulb temperature 20ºC, wet-bulb temperature 15ºC. 2.The above model is our basic type,the final product may have some differences from it. |
