Heavy-Duty Double Shaft Shredder for Scrap Metal and Wood

Product Description

Raw Material & Final Product:
Applicable Material: Plastic(Plastic drums, Barrels, Bottles, Tanks, Baskets); Plastic sheets; Electronic waste; Metals(lead, aluminum, copper, cable, barrels, sheet scrap, sheet metal pieces left over from production processes); Aluminum cans; Wood(wooden pallets or fruit boxes); Waste tire, rubber; Waste household appliances; Paper waste (cardboard, newspaper, office paper, books, magazine, kraft paper, paper core, cardboard tube, paper packaging material); Introduction
YILI Machinery YLD series double Shredders are used for pre-crushing of materials like the plastic barrel, plastic drum, plastic bottle, plastic tanks, plastic baskets, etc., which are hard to crush by a common crusher. The material after Pre-crushing, it will go to crusher to make fine crushing , which can increase the capacity of crusher and the lifetime of the crusher blades. Our Shredder is equipped with SIEMENS PLC intelligent controlling system, it has the features of automatic stop, reserve direction run, and alarming functions in case of the possible material block, metal escape, or overload.
The YLD series plastic shredders and YL series strong crusher machine can compose a shredding system, they can meet any customer's plastic size reduction requirement from 4mm to 50mm. If necessary, using our ZL series plastic pelletizing line, customers also can make the recycled grinded plastic chips into plastic granules, which can be used in much more field. Here we can supply you with turn-key solutions plastic recycling solutions from waste dirty plastic to clean high quality recycled plastic granules. Please contact us directly to give more information and suggestions for your plastic recycling.
Technical Specification

Model	Shredding Motor Power(kw)	Shredding Chamber size(mm)
YLD-300	7.5	510*300
YLD-400	7.5	510*400
YLD-600	7.5+7.5	510*600
YLD-800	18.5+18.5	600*800
YLD-1000	22+22	800*1000
YLD-1200	30+30	1000*1200
YLD-1400	55+55	1400*1200
YLD-1600	55+55	1600*1200
YLD-1800	75+75	1800*1400
YLD-2000	90+90	2000*1400

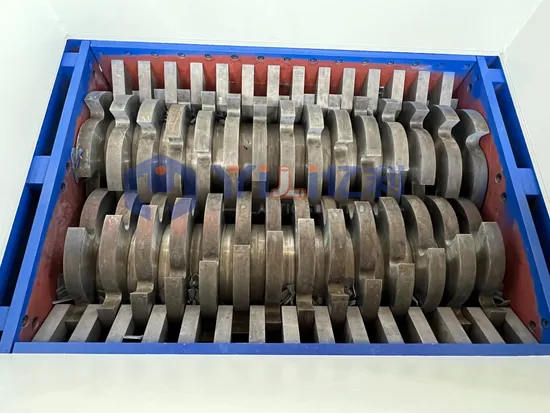

Tech Features & Advantages Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers; Dual shafted, slow-speed, high-torque waste shredder with hardened steel blades; The two cutting rotors powerfully grab the feed material, and no matter the feed material is a large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces; Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length, and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using a forklift truck to feed. Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high-quality steel, suitable for shredding tough materials and for extra long life; Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities, and shapes with the new double-shaft shredder; Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume; Blades removal and replacement can be carried out safely and simply. Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads. The strong secondary crusher will be installed after the shredder to make the final products reaching any size requested by customers
Main Machines For the line
