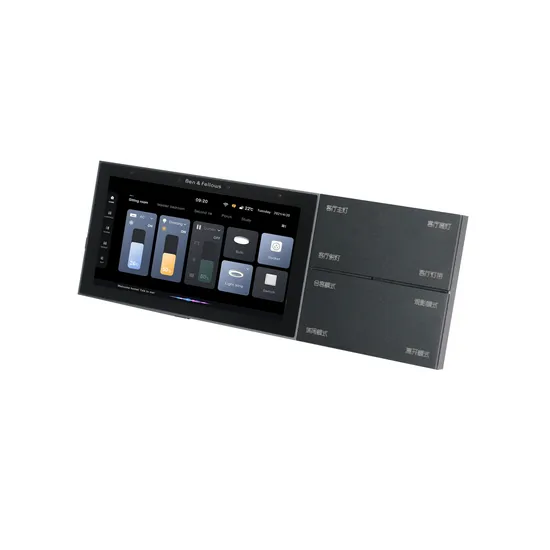

6 Inch Touch Screen Bluetooth Smart Control Host Built-in 2W Speaker with Tuya Support WiFi RS485

Product Description

Product Description 6-Inch Smart Control Host with Tuya

Description: This Bluetooth smart control host with Tuya; plus configurable buttons for lighting, curtain, home mode, can connect to Bluetooth speakers to play online music in your home or small commercial area. It supports WiFi network connection and RS485 smart home protocol.
Features 1. With high-transparency crystal panel and high sensitivity 6-inch touchscreen
2. Adopt Bluetooth wireless connection technology 3. Standard 86 mounting box mounted on the wall for easy control 4. With RJ45 network interface 5. With Tuya ZIGBEE gateway 6. RS485 integration with third party system 7. Support Tuya APP for smart home control. 8. Support smart home control: air conditioning temperature, curtain opening and closing, light color, light brightness and volume. 9. Suitable for hotels, villa, homes, commercial areas, kid's room, etc.
Bluetooth only supports transmit but not receive.
Specification

Model	B6-ADT1
System	Android 8.1
RAM	2G
ROM	8G
Network	WIFI
Display	6-inch capacitive touch screen
Resolution	1440*720 IPS
Bluetooth Wireless Range	10M
SNR	≥98dB
Frequency Response	20Hz-20KHz
Music format	MP3,WAV,WMA,FLAC,APE,ACC,AC3,OGG
Video format	MPEG-1/2/3/4,RM/RMVB,WMV,MOV,MK,VOB,AVI,3GP,H,264
Power Requirements	AC 110-250V
Color	Black
Product Dimension	242x86x12.5mm
Net Weight	0.54kg
