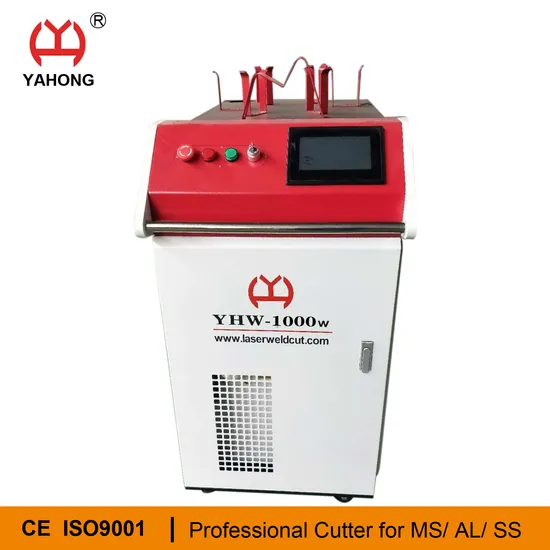

1000W 1500W 2000W Handheld Fiber Alloy Laser Welder Suppliers with CE Certificate

Product Description

1000w 1500w 2000w Handheld Fiber Alloy Laser Welder Suppliers with CE Certificate

I.Advantages:
1. The welding seam is beautiful, uniform, no welding scar, no discoloration, and no need to polish in the later stage. Save labor and working hours and improve efficiency.
2. The welding is firm, and the weld strength reaches or exceeds the base metal itself;
3. One-time welding and forming, basically no deformation, meeting the requirements of high-quality products
4. Fast welding speed, high efficiency, 2-10 times faster than traditional welding, one machine can save at least 2 welders a year.
5. The operation is simple, easy to learn, and quick to learn. It only takes 5 minutes to master, no welder foundation is required, and labor costs are saved.
6. Low cost, power consumption is only one tenth of general argon arc welding or gas shielded welding.
7. Laser welding requires less consumables and has a long life.
8. Red light positioning, welding position is more accurate.
9. Laser welding has less gas and dust and is more environmentally friendly.
II.Features:
1. Three modes of self-fusion welding, wire feeding and cutting can be selected at will;
2. Tailor welding, fillet welding, stitch welding, straight and arc omnipotence;
3. Adopt international famous brand laser power.
4. The welding head designed with ergonomics is only 0.8KG in weight, which fully considers the applicability of the welding process and the comfort of long-term use.
5. Support process library storage, saving debugging time.
6.6 kinds of light emission modes, suitable for different scenes.
7. Adjustable light spot (0-5) mm.
8. The control screen directly digitally sets the parameters of the wire feeder, and the wire feeding is smooth.
9. Support delivery (0.8\1.0\1.2\1.6mm) stainless steel, carbon steel, aluminum welding wire.
10. Perfectly replace some traditional argon arc welding, electric welding on thin stainless steel plate, iron plate, aluminum plate etc.
III. Weld Melt depth table:

Model	Carbon steel	Stainless steel	aluminium	red copper
1000w	2.06mm	2.68m	2mm	---------
1500w	2.77mm	3.59mm	3mm	0.2mm
2000w	3.59mm	4.57mm	4mm	0.3mm

Note: the actual welding thickness can refer to the penetration and be determined according to the actual demand. If welding wire or double-sided welding is selected, the welding thickness can be greater.
Melt depth diagram:
IV.Welding type:
Fillet welding vertical welding Tailor welding flat welding Overlap welding
Smooth and beautiful weld, reduce subsequent grinding process, save time and cost.
Welds free scar Beautiful seam No deformation of workpiece
All kinds of flat plate, circular tube, rectangular tube and special arc can be welded.
V.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.
VI.Certificates
