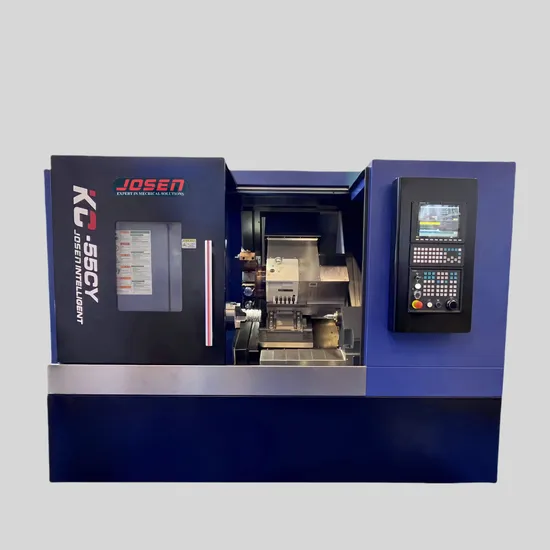

High Quality Inclined Bed Precision Turning Milling Machine with Y-Axis

Product Description

Product Description

1. Equipped with high precision spindle: Eliminate spindle vibration effectively, The runout accuracy of the spindle positioning surface around than 2 μm. which provides the best workpiece stiffness, concentricity, surface roughness and roundness due to the workpiece clamping closer to the spindle bearing. It can also significantly prolong the service life of the tool. The front end of the spindle is a labyrinth sealing structure with positive air pressure protection to prevent coolant and impurities from entering the spindle. Twin spindle with Y axis driven turret can be from simple to complex one hit machining from raw material to finished parts .less setup time ,complete in one setup .during machining process can be turning ,milling, tapping, drilling, boring , hobbing ,slotting operation . 2. The main castings are made of high-grade cast iron by resin sand casting. Adopting advanced finite element analysis technology, the design structure is reasonable and the layout is optimized. And by aging treatment, it can ensure the long-term machining stability of the performance . 3. X and Z axis servo motors are directly connected with precision ball screws through flexible couplings with high precision, and the two ends of the screws are fixed, The reinforced bearing support seat and the ball screw are pre-stretched to ensure the rigidity of the transmission and the dimensional stability of the cooling and heating machine. 4. automatic centralized lubrication system to lubricate the screw, guideway and other moving parts through the set oiling interval and oiling duration to ensure the accuracy and easy service of the machine . 5. The spindle mounting with Magnetic ring encoder, which makes the positioning and C-axis indexing more accurate. 6. The 12-station BMT55 driven turret with bidirectional positioning index, short tool change time and high positioning accuracy, which is conducive to improving machining accuracy. The Y-axis 100 MM travel stroke (± 50) off centerline, capable of eccentric milling, drilling and tapping. High torque power turret and servo-driven C-axis are standardly equipped with 4-axis machining ability. 7. The feed system is driven by servo motor with roller screw drive for high precision and wear resistance. 8. The machine is supported by P-class large-size precision heavy-duty roller guideway with strong support rigidity and high guiding accuracy. The machine is fully protected by the outer cover to prevent the cutting fluid from splashing.

Product Parameters

S.N	Description	Unit	Details
1.Machine Specification
1.1	Maximum rotary diameter of the bed	mm	650
1.2	Maximum machining diameter	mm	330
1.3	Maximum cutting length	mm	500
1.4	Standard chuck size	Inch	8
2.CNC control system
2.1	FANUC		OITF PLUS
3.Spindle
3.1	Spindle Model		Belt spindle
3.2	Spindle Specification		A2-6
3.3	Spindle Through Hole capacity	mm	66
3.4	Max bar capacity	mm	52
3.5	Front bearing diameter	mm	100
3.6	Standard spindle speed	rpm	50-4000
3.7	Spindle motor rated power (continuous operation rated)	Kw	11
3.8	Rated power of spindle motor (15 minutes running rating)	Kw	15
4. TURRET
4.1	Turret center height	mm	BMT55
4.2	Number of stations	No	12
4.3	Tool disc diameter	mm	330
4.4	Maximum Boring Bar Diameter	mm	40
4.5	Cutter Square Size	mm	25 x 25
4.6	Drive tool motor power	Kw	4.5
5.X,Z axis precision
5.1	X,Z axis position accuracy	mm	± 0.005
5.2	X,Z axis repeat position accuracy	mm	± 0.003
6. X axis parameter
6.1	X-axis travel	mm	260
6.2	X-axis rapid traverse speed	m/min	24
6.3	X-axis ball screw diameter and pitch	mm	40 x 10(C3 class)
6.4	X-axis guideway form and size	mm	35(Roller guideway l P4 class)
6.5	X-axis motor power	Kw	2.3
7. Y axis parameter
7.1	Y-axis travel	mm	±50
7.2	Y-axis rapid traverse speed	m/min	24
7.3	Y-axis ball screw diameter and pitch	mm	32 x 10(C3 class)
7.4	Y-axis guideway form and size	mm	35(Roller guideway P4 class)
7.5	Y-axis motor power	Kw	1.8
8.Z axis parameter
8.1	Z-axis travel	mm	600
8.2	Z-axis rapid traverse speed	m/min	24
8.3	Z-axis ball screw diameter and pitch	mm	40 x 10(C3 class)
8.4	Z-axis guideway form and size	mm	45(Roller guideway P4 class)
8.5	Z-axis motor power	Kw	2.3
9.Hydraulic tailstock
9.1	Tailstock Sleeve Travel	mm	400
9.2	Tailstock form	mm	Programmable
9.3	Maximum pressure of tailstock	Kg	20-25
9.4	Sleeve bore		MT-5
10.Other
10.1	Cooling box capacity		160
10.2	Power box capacity		30
10.3	Overall dimensions of the machine	mm	2850 X 1700
10.4	Total weight of machine	kg	5500
