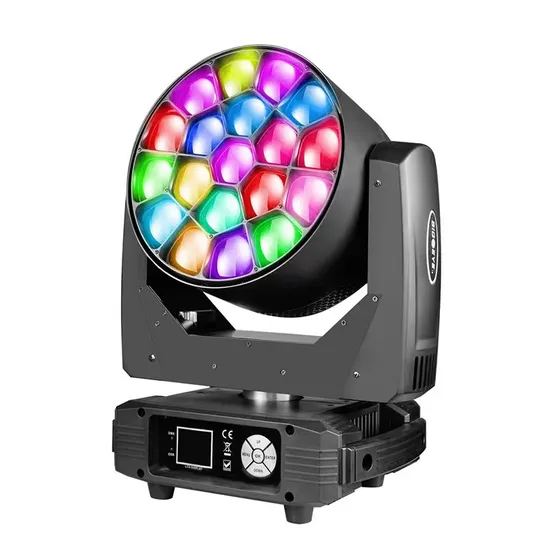

Big Bee Eye 19* 15W Clay Paky LED Moving Head Stage Beam Wash Zoom Light

Product Description

Hot sales productProduct Description
Functional Overview With a zoom range ratio of 1:8, it provides intense and well-defined mid-air beams as an exceptionally wide and even wash coverage, making it a perfect fixture for any application , even in outdoor stadium conditions. We have added more advanced correction of color uniformity technology which keeps NEOZONE at uniform color performance to solve the mixture of batch problems. Being exceptionally quiet moving with the new smooth step motors, and advanced cooling in house design, flicker-free adjustable management design for HD cameras, the fixture is ideal for live Stage, TV shows, art performing, etc.
Features
Light Sources:19 x 15W RGBW LED19 x 15W RGBY LED (Optional)Variable CTO: 2,500K-8,000KCombing the Powerful shape Beam and dynamic WashIndividual Pixel controlBuild-in color macro effectMotorized liner zoom systemAutomated color correction system to ensure a consistent outputBeam angle: 3.5°-28.5°Field angle: 4°-60°CRI≥90 (RGBY)Outstanding strobe effect with variable speed0~100% smooth dimmingFast moving in quietFlicker free management for HD and UHD camerasDust-proof and oil-proof housing designProtection Rating: IP20
TECHNICAL SPECIFICATIONS Model
SP- Y19B1 Light source
Light Sources:19 x 15W RGBW LED19 x 15W RGBY LED (Optional)LED life expectancy: 30,000 hours* manufacturer specification Optical system
Advanced optical system to ensure clear and large-range beam & wash effectHigh-efficiency zoom optical system, ratio 1:8Beam angle: 3.5°-28.5°Field angle: 4°-60°CRI≥90 (RGBY) Control and Program
4 buttonsDisplay: Color DisplayProtocols: DMX512,RDM, Art-net, sACNDMX Protocol modes: 7Control channels: 17/21/23/35/78/92/97/99CHPan/Tilt Resolution: 16 bitDimmer: 16 bits PAN & TILT
Pan movement: 540°Tilt movement: 270°Automatic Pan/Tilt position correction Electrical and Connectors
Input voltage range: 100-240V~ 50/60HzPower consumption: 400 WPower In/Out: Power Connector in/outData in/out: 3-pin or 5-pin XLR, RJ45
Product Specification
Product size: 340*260*430mmCarton Packaging size:42.5*34*50CMN.W : 12KGG.W : 16KGFlight Case Dimensions :Width: 860 mm Depth: 520 mm Height: 720 mm Weight: 86.5 kg (four-pack loader case)
Work environment
Maximum ambient temperature: 40°CMinimum operating temperature: 0°CMaximum surface temperature: 75°CProtection Rating: IP20Installation
Available in horizontally or vertically mounting wayMulti projection angle operation2 x omega brackets (optional with 2 x foldable fixed clamps)Safety rope hangingIncluded items
Digital User ManualPower Cable2 x foldable fixed clampsSafety Rope HoleCompany Profile
