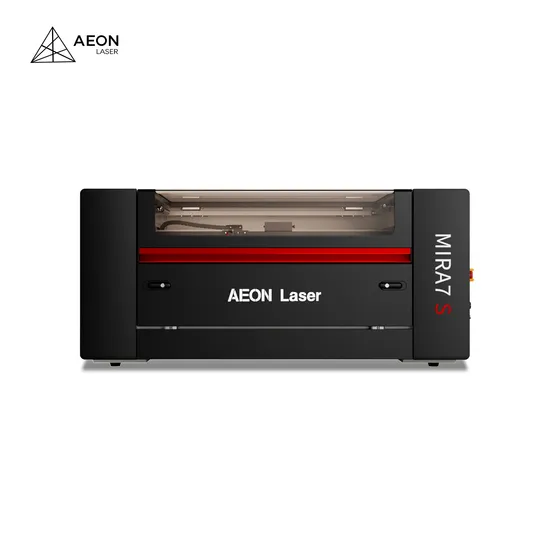

Aeon CO2 Mira7 S 700mm*500mm Desktop Laser Engraving and Cutting Machine for Acrylic Rubber Stamp
Basic Info.
Model NO.
Mira7
Application
Textile Machinery, Woodwork Industry, Advertising Industry, Education
Cooling System
Water Cooling
Technical Class
CO2 Laser Engraving Machine
Applicable Material
Wood, Acrylic, Glass, Plastic, Leather, Ploywood
Structure Type
CO2 Laser Engraving Machine
Laser Classification
Gaseous Laser
Laser Technology
Laser Vapor Cutting
Fastest in Its Class
Scan Speeds of up to 2000 mm/Second
Super Clean Pack Design
Enclose The Linear Rails and Bearing Blocks
All-in-One System
105W Built-in Air Pump, 330W Built-in Exhaust Fan
Multiple Interfaces
USB, Ethernet, and WiFi
Graphic Format Supported
Ai/Pdf/Sc/Dxf/Hpgl/Plt/Rd/Scpro2/Svg/Lbrn/BMP/JPG/
Software
Lightburn/Rdworks
Add-Ons
Roller Rotary, Rotary Chuck, Stand, Fume Extractor
Working Area
700mm*450mm
Dual Worktable
Honeycomb+Blade for Laser Engraving and Cutting
Transport Package
Woodenbox
Trademark
Aeon Laser
Origin
Suzhou China
HS Code
8456110090
Production Capacity
3000/Year
Product Description
Product Description
Aeon CO2 Laser Engraver CNC Cutting Machine Redline Mira7 7050 40W/60W/75W/80W for Rubber Stamp
| Parameters | Model | MIRA5 S | MIRA7 S | MIRA9 S |
| Working Scope | Working Area (mm) | 500*300mm | 700*500mm | 900x600mm |
| Z Axis Lifting Space | 140mm | 140mm | 140mm | |
| Max Lifting Capacity | 15KG | 25KG | 25KG | |
| Laser Tube | Laser Tube Power | Glass: 45W/60W RF: 30W/60W | Glass:45W/60W/75W/80WRF: 30W/60W | Glass:80W/90W/100W RF: 30W/60W |
| Motion system | Max Engraving Speed | 3500mm/s (RF) 1200mm/s (Glass) | 4000mm/s (RF) 1200mm/s (Glass) | 4000mm/s (RF) 1200mm/s (Glass) |
| Acceleration | 8G (RF)5G (Glass) | 8G (RF)5G (Glass) | 8G (RF)5G (Glass) | |
| Motor | AC Servos (RF) DC Steppers (Glass) | AC Servos (RF) DC Steppers (Glass) | AC Servos (RF) DC Steppers (Glass) | |
| Accuracy | Minimum Font Size(RF Tube) | 1.0x1.0mm | 1.0x1.0mm | 1.0x1.0mm |
| Positioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | |
| Configuration | Working Table | Honeycomb | Honeycomb + Blade table | Honeycomb + Blade table |
| Cooling system | Glass: Built-in 3000 chillerRF: Air-cooled | Glass: Built-in 3000 chillerRF: Air-cooled | Glass: Built-in 5000 chillerRF: Air-cooled | |
| Fume Exhaust Fan | Built-in inline 60W | Built-in inline 75W |
| |
| Air Assist | Built-in 45W | Built-in 85W | Built-in 85W | |
| XY axis fully dust-proof | √ | √ | √ | |
| Auto Focus | √ | √ | √ | |
| Wireless Connectivity | √ | √ | √ | |
| Red Dot Positioning | √ | √ | √ | |
| Material Pass Through Door | √ | √ | √ | |
| Camera | 160° 5MP(2592x1944) | 160° 5MP(2592x1944) | 160° 5MP(2592x1944) | |
| Tooless optical system | √ | √ | √ | |
| Internal Memory | 1G | 1G | 1G | |
| System | Smart Panel (monitoring function) | × | √ | √ |
| Fault alarm and diagnosis | × | √ | √ | |
| Operation status light | √ | √ | √ | |
| Water Flow Protection | √ | √ | √ | |
| Water Temperature Alarm | √ | √ | √ | |
| Operating Software | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | |
| Compatible Design Software | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | |
| Safety | Laser Class | Class 1 laser product | Class 1 laser product | Class 1 laser product |
| Cover lid interlock | √ | √ | √ | |
| Side panel lid interlock | √ | √ | √ | |
| Key lock | √ | √ | √ | |
| Package | Machine Dimension(mm) | 900*700*410 | 1128*945*510 | 1328*1070*530 |
| Net Weight (KG) | 110 | 180 | 220 | |
| Gross Weight(KG) | 125 | 230 | 290 |
