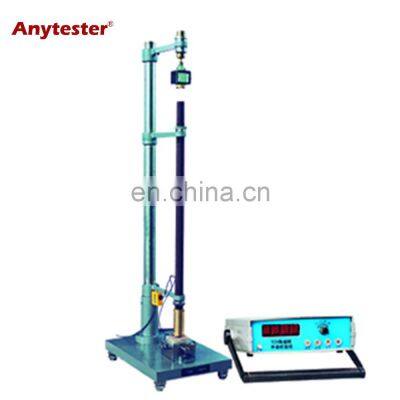

HY8070 Ceramic Tile Impact Resistance Tester is used to determine the impact resistance of all ceramic tiles by mesuring the coefficient of restitution. A steel ball droping from a fixed height onto the specimen, measuring the rebound height to calculate the coefficient of restitution.
Standard
Specification
Model
| HY8070
|
Steel ball diameter
| 19mm±0.05mm
|
Falling height
| 1000mm±1mm
|
Laser precision time measurement
| Accurate to 1μs
|
Power supply
| AC220V, 50Hz, 1.5kw
|
Working chamber size
| 500×400×1440mm
|
