New Model 1.6ton Ton Mini Concrete Mixer Truck for Self Mix and Transport Concrete

Product Description

Product Description

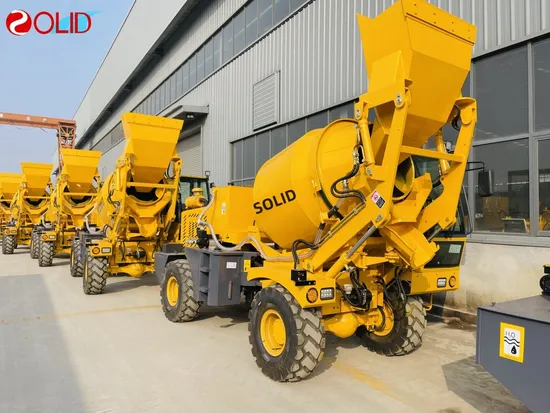

Model HY1600 Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader. It features bidirectional driving, which is realized by the 270 degrees slewing of drum. The concrete output ability is 14 cube meters per hour. The outsize wheel-side reducer driving axle and full hydraulic transmission case make the mixer truck move in any kinds of complex off road ways, the max. moving speed can be up to 25 km/hour, and the min. turning radius is 5.3 meters only.
HY-1600 is equipped with driving camera, automatic water feeding & metering system, hydraulic water suction pump, and air conditioner, etc. The mixing drum can be slewed hydraulically through 270 degrees together for high discharge over 1.6m on the four sides of the vehicle. The drum can also be lifted up 16 degrees from the bottom by two hydraulic cylinders for the convenience of concrete discharge.
The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output. High strength steel plate, which enhances the load capacity and high stability of vehicle. The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.

Name	Item	Specification
	Net	5500 KG
	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity		0.4m3
		Control		Hydraulic
	Tilt angle	20%
	Speed	High		0-25KM/H
		Low		0-9KM/H
	Mini turning radius	4.5M/R
Engine	Type	Yunnei
	Rated Power/RPM	60KW/2200RPM
	Max.Torque/RPM	360N.M/1400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	1.6M3
	Bank Angle	16 °
Chute	Swing Angle	≥50°
	Angle control	Hydraulic
Loader control	Hydraulic 4 way stick
Over size	5400x2400x3500mm

Detailed Photos
Features
Features&Advantages:
Mobile concrete mixer feature combines self-loading,weighting,mixing and discharging,it can maximize and improve the job efficiency and reduce the production cost and time.
High efficiency Capacity:8-10 cubic meters per hour Labor-saving WD Loading,pumping,mixing,delivering and discharge. Details:

A. Ultimate tank capacity technology can discharge with different angles by chute. The clever discharge cone is designed,to provide stronger material sealing capacity and higher filling rate,thus improving the loading capacity of the tank up to 6%. Loading capacity is larger for the same volume. The center of gravity is low for the same loading capacity. B. High-strength wear-resistant application. Tank and blades are made of high-strength wear-resistant steel,with service life increased by 30%. Hoppers and detachable chutes are made of multilayer high-strength wear-resistant liner plate,with service life increased by 50%. C. New exterior styling
Overall machine features attractive appearance,smooth stream line,perfect streamlined hopper,arc-shaped rear support,and full steel catwalk,giving more attractive design to provided you a new experience. D. Efficient hydraulic drive system
As the complete vehicle is equipped with four-wheel drive,it can be used for efficient and stable concrete production in harsh working conditions. E. Four-dimensional mixing technology. Large rise angle is designed at from cone to provide uniform mixing,with changed on a slump change at all stages of ≤5%. Unique continuous trace design is used,with residual rate≤0.4%. Large gliding angle is designed at rear cone,to ensure fast discharge at idle speed. F. Safe and flexible operation system Longitudinal resistance-free design is used,to provided more flexible manipulation. Front and rear linkage double-limit structure is used,to provide higher safety. G. Convenient water supply system Integrated control is used with one-inlet and multiple-outlet applied,convenient and fast. Liner water tank structure is used with service life increased by 50%. H. Cabin:Front cab on side of loading shovel ROPS-FOPS type complete wit double closing door,camera,air conditioning,available upon
Free Parts List

1	Start Relay	1 pcs
2	Fuse	1 set
3	Engine filter	1 pcs
4	Copper sheathing	3 pcs
5	Cylinder seals	3sets
6	electronic regulator	1 pcs
7	O rings	1 sets
8	Grease nipples	14 pcs
9	Electric bulb	8 pcs
10	Grease Gun	1 pcs
11	Pincers	1 pcs
12	Solid wrench	1 set
13	Fork wrench	1 set
14	Tool box	1 pcs
15	Rim wrench	1 pcs
16	Engine toolbox	1 set
17	Safe valve	1 pcs

After Sales Service
1. Our technicians will provide on-site service to customers in China. We will supply the whole day online service to foreign customers. According to foreign customer's requirement, we will arrange technicians go abroad to install or maintenance the machine if necessary.2. Within the warranty period and the machine parts damage under normal using condition, we will offer free new ones for replacement.3. After the expiry of warranty, we can renewal of the contract, which can enjoy the same service as that during the warranty period.
Company Profile
SOLID was founded in 2008 year. Since then, SOLID has stood at the forefront of the Chinese construction machinery industry and developed into one of the domestic industry's largest, most influential, and most competitive enterprise groups with the most complete product varieties and series.SOLID is ranked 65th in the list of China's Top 500 Companies, 44th in the list of China's Top 100 Manufacturing Enterprises, and 2ND in the list of China's Top 100 Machinery Manufacturers. SOLID is dedicated to its core value of "Taking Great Responsibilities, Acting With Great Morals, and Making Great Achievements" and its corporate spirit of being "Rigorous, Practical, Progressive, and Creative" in order to keep moving towards its ultimate goal of becoming a leading world-class enterprise capable of creating real value.SOLID mainly supply Hoisting machinery, MiningMachinery Machinery, , Excavators, Loaders, Road Machinery, Piling Machinery, Non-Excavation Machinery, Concrete Machinery, Special Vehicle, Aerial Working Equipment, Sanitation Machinery, Fire-fighting Machinery, Tunnel Machinery, Resource Exploration Machinery, Port Machinery and so onSOLID products, including mechanical vibratory road rolls, excavators and motor graders, have successfully participated in the construction of the largest railway project in the Philippines, thanks to their outstanding performance and comprehensive after-sales service. These three types of machines have contributed to the project's progress in an organized manner. During our on-site visits to customers, they expressed that SOLID products are reliable in quality, and the compact excavator equipped with a hydraulic breaker delivers excellent impact force. This effectively ensures the project's advancement and contributes to its completion within the expected timeframe, providing additional momentum to the development of local livelihood projects.
Packaging & Shipping

We have many ways to delivery concrete self loading trucks. Safe, fast and trust1. Container: which is cheapest and fast.2. Bulk cargo ship: which is better for bigger construction equipment3. Flat rack ship: which is better for bigger machine and also no need to dismantle4. RO RO ship: which is good for every machine and faster.You can depend on your own requires to choose one favorite.Delivery: Within 20 working days after your payment.
FAQ
1. How long is the validity of quotation?
Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.

2. What is your delivery time?
Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 7-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, it depend on the order quantity.

3. Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.

4. How can we ensure quality?
The final inspection is always carried out before shipment.

5. How to install the equipment after purchasing?
We will provide professional installation video to illustrate.

6. What is your MOQ?
1 Set
