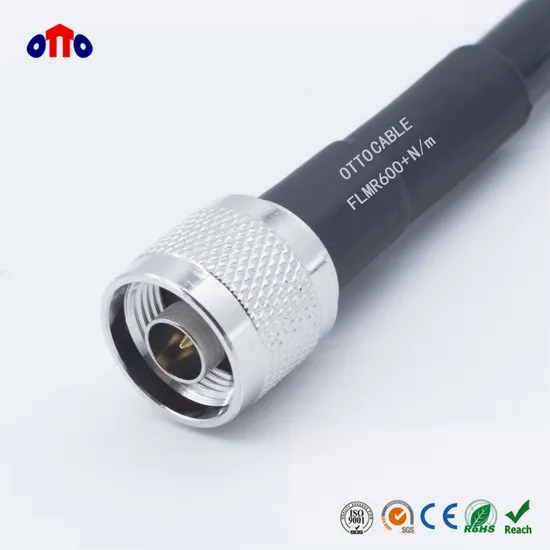

50 Ohm RF Coaxial Cable LMR600 with N / TNC Plug for Antenna
| US$0.60-2.00 | 5,000 Meters (MOQ) |
Basic Info.
Model NO.
LMR 600
Type
Coaxial
Material Shape
Round Wire
Conductor Type
Solid
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
LMR600
Brand
Otto Cable
Inner Conductor
CCA/Bc
Insulation
Foam PE
Shield
Aluminum Foil+Tinned Copper
Transport Package
As Per Request
Specification
CE, RoHS
Trademark
OTTOCABLE
Origin
China
HS Code
8544200000
Production Capacity
50km/Day
Product Description
50 Ohm RF Coaxial Cable (LMR600) for Antennas
These 50 Ohm LMR600 series coaxial cables can be equipped with varied connectors,such as SMA,N,BNC,TNC connectors.This LMR600 cable and its assemblies works very well with cellphone signal boosters, repeaters
and have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
| Coaxial Cable LMR600 | |||
| Construction | |||
| Item | Material | Diameter(mm) | |
| Inner Conductor | Bare Copper / Copper Clad Aluminum | 4.47 | |
| Dielectric | Foam PE | 11.56 | |
| First Shield | Bonded Aluminum Foil | 11.71 | |
| Second Shield | Tinned Copper / AL-Mg Wire Braid | 12.45 | |
| Jacket | PVC/PE/LSZH | 14.99 | |
| Electrical Characteristics | Attenuation @20ºC (dB/100M) | ||
| Impedance(Ω) | 50 | @220MHz | 4.9 |
| Velocity of Propagation(%) | 85 | @450MHz | 7.1 |
| Return Loss(dB) | ≥20 | @900MHz | 10.3 |
| Capacitance | 78.4 | @1500MHz | 13.6 |
| Shielding Effectiveness(dB) | ≥90 | @1800MHz | 15.0 |
| Operating Temperature(ºC) | -30 to +70 | @2000MHz | 15.9 |
