Powerful 88HP Af88g Harvester with High Efficiency
Basic Info.
Model NO.
AF88G
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Power Source
Diesel
Harvest method
Vibration fall
Drive Type
Gear Drive
Transmission
Soft Shaft
Portable Harvester Type
Backpack Type
Certification
QS, GMP, ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Forestry
Warranty
1 Years
Rated Power(Kw)
65
Fuel Tank Volume(L)
95
Min. Ground Clearance(mm)
285
Header Width(mm)
2000
Tank Volume(L)
1400
Unloading Grain Rotation Range(Degree)
270
Hydulic Oil Tank Volume
21
Transport Package
Nude
Specification
5160*2750*2750mm
Trademark
Top Brand
Origin
China
HS Code
84335100
Production Capacity
250 Units/Month
Product Description

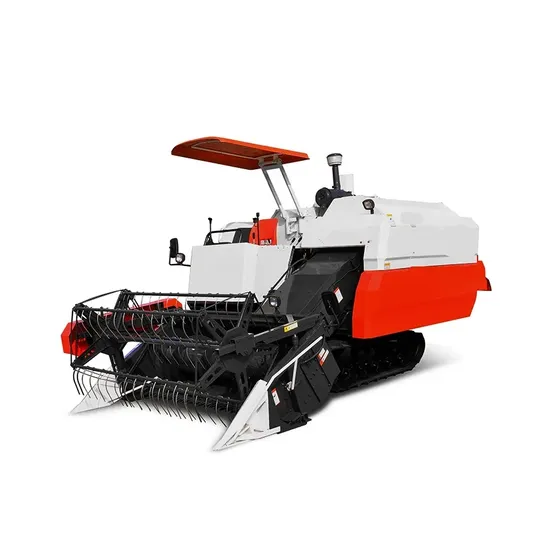

China Famous Harvester Brand AF88G 88HP Small Rice Combined Harvester for Sale Product Description
AF88 is a universal combined harvester applicable for all the landforms and with such advantages as high operating efficiency, complete cleaning, good anti-bogging performance, excellent lodging effect and multi-purpose function.Operating condition: paddy field and dry farmland; it can be hooked with the oilseed or corn header.
Applicable region: Asia Pacific, Europe and America, Latin America, Africa and other regions.
Detailed Photos
Product Parameters
| Production Type | AF88G | ||
| Item | High unloading | ||
| Dimension | Length(mm)(for working condition) | 5160 | |
| Width(mm)(for working condition) | 2750 | ||
| height(mm)(for working condition) | 2750 | ||
| Weight(kg) | 2970 | ||
| Engine | Model | Dachai-DEUT ZCA498Z-09T2/01 | |
| Structure Type | Four-stroke, in-line, vertical, water-cooled, and turbocharged diesel engine | ||
| Rated power(kw) | 65 | ||
| Rated speed (r/min) | 2400 | ||
| Fuel | Diesel (0#) | ||
| Fuel tank volume(L) | 95 | ||
| Traveling (chassis) | Rubber crawler | specification Link pitch(mm) Link quantity(link) Width(mm) | 90×51×450 |
| Track ground pressure(kpa) | 21.2 | ||
| Min. Ground Clearance(mm) | 285 | ||
| Gearbox Type | HST | ||
| Transmission type | (HST+3-gear) continuously variable-speed | ||
| Theoretical traveling speed(km/h) | low speed 0~3.96 Standard speed 0~5.14 Walk speed 0~7.37 | ||
| Header System | Header width(mm) | 2000 | |
| Threshing System | Threshing type | Vertical type axial-flow bar tooth type | |
| Threshing cylinder | Outer diameter(mm) | Φ620×1954 | |
| Rotate speed(r/min) | 580 | ||
| Grain unloading system | Tank volume(L) | 1400 | |
| Hopper(Pcs) | / | ||
| Unloading grain rotation range(Degree) | 270 | ||
| (mm)Unloading grain height range(mm) | 920~4200 | ||
| Electrolyte and others | Battery | Voltage(V) | 12 |
| Starting relay | Rated current(A) | 50 | |
| Voltage(V) | 12 | ||
| Hydulic oil tank volume | 21 | ||
| Hourly production(h/h)(Vertical dry field crops environment) | ☆0.3~0.6 | ||
