Ckt3240 Digital Multimeter Dmm

Product Description

Product Description https://ckt2017.en.made-in-china.com/product-list-1.html
Brief Introduction

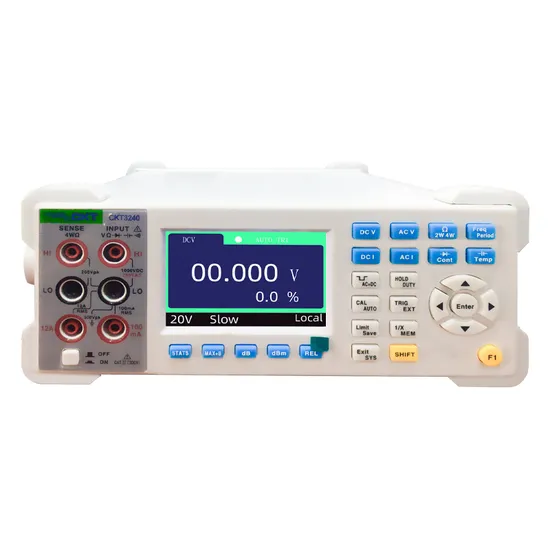

CKT3240 is desktop true-rms digital multimeter with comprehensive functions, stable performance, and 4½ digit 19999 counting. The multimeter adopts STM32 chip and external AD chip to provide powerful functions, outstanding performance and good user experience. Its 3.5" large screen display offers legible reading, rich content and good display effect. Grid electric supply ensures its high reliability. Comprehensive function, full-range overload protection and unique industrial design make it the first choice for electricians and university laboratories.

SPECIFICATIONS
	CKT3240 Benchtop Multimeter (4 ½ digit resolution)
Parameters	Parameters	Measurement range	Maximum resolution	Uncertainty
	DCV	10 uV~1000 V	10uV	0.15%
	ACV	10 uV~750 V	10uV	0.8%
	DCI	0.01 uA ~ 10 A	0.01uA	0.35%
	ACI	0.01 uA ~ 10 A	0.01uA	0.8%
	Resistance	0.01Ω ~20MΩ	0.01Ω	0.1%
	Frequency/cycle	0.01 Hz ~20MHz	0.01Hz	0.2%
	Capacitance	1 pF ~ 10 mF	1pF	7%
Maximum Display	22000 (4 1/2 digit)
Measuring Speed	7 time/s (fast), 4times/s (medium), 2 times/s (slow)
Display Screen	3.5" TFT LCD (resolution of 320*480)
Range	Automatic and manual
Mathematical Functions	Relative measurement, max/min, dB, dBm, reading hold
Interface	USB device standard, RS232 optional
Others	Resistance 4-line measurement, AC+DC measurement, On-off/diode, Limit test function
GENERAL FEATURES
Power Supply	Voltage: 220V/110VAC, Frequency: 50Hz/60Hz
Size and Weight	265Mm×105mm×305mm, 2.3Kg
ORDER INFORMATION
Accessories	Test probe AC Power Cord
