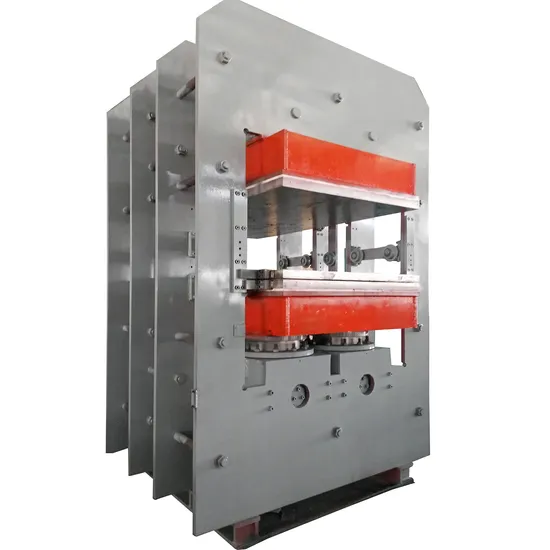

Rubber Product Moulding Machine / Curing Press / Rubber Vulcanizing Press
| US$7,000.00-9,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XLB-D1200x1000/800T
Certification
CE, ISO, CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Usage
Produce Rubber Products
Typer
Vulcanizer
Pressure(Mn)
800 Tons
Daylight(mm)
200 or as Requirement
Plate Size(mm)
1200X1000 or as Requirement
Main Motor Power
5.0 Kw
Heating Mode
Electric or Steam or Oil
Working Layer
1-5
Sealing
Good Sealing System to Keep No Oil Leakage
Overall Dimension
2000X1700X1680mm
Transport Package
Wooden Cases
Specification
National Standard
Trademark
SFC
Origin
Qingdao, China
HS Code
84778000
Production Capacity
50 Sets/Year
Product Description
Rubber Vulcanizing Press / Rubber Product Moulding Machine / Curing PressThis machine belongs to large vulcanizing machine series, mainly for the rubber vulcanization, generally use the frame type structure. Its unique features are:
1.compact structure, beautiful modelling and strong clamp force
2.Per working position can be heated to 220 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference
3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc.
| Model | Total Pressure | Daylight | Working layer | Piston Stroke | Main Motor Power | Overall Diameter |
| XLB-350*350*2 | 0.25 | 125 | 2 | 250 | 2.2 | 1200*580*1200 |
| XLB-400*400*2 | 0.50 | 125 | 2 | 250 | 2.2 | 1400*500*1400 |
| XLB-600*600*2 | 1.00 | 125 | 2 | 250 | 2.2 | 1880*820*1680 |
| XLB-750*850*4 | 1.60 | 125 | 4 | 500 | 3 | 1730*930*2460 |
| XLB-900*900*2 | 2.5 | 200 | 2 | 400 | 4 | 2345*960*1385 |
| XLB-1200*1200*1 | 3.15 | 300 | 1 | 300 | 4 | 2800*1300*2300 |
| XLB-1300*2000*1 | 5.60 | 400 | 1 | 400 | 8 | 2000*1860*2500 |
| XLB-1500*1500*1 | 8.00 | 800 | 1 | 800 | 16.5 | 2200**2200*4300 |
| XLB-1500*2500*1 | 15.00 | 400 | 1 | 400 | 11 | 3000*2500*3300 |
| XLB-2000*2000*1 | 20.00 | 400 | 1 | 400 | 11 | 3600*3000*3300 |
We can design and manufacture all kinds of non-standard rubber machinery accorging to the requirement of the customers.
Qingdao shun cheong rubber machinery manufacturing co.,ltd is a chinese manufacturer with establishment in 2007, and have 10 years experience in making various of rubber machines area, also pass the ISO 9001:2008 , SGS, CE certificates too.
