Volume Measuring Equipment Package Weighing and Barcode Scanning Machine for Express Delivery

Product Description

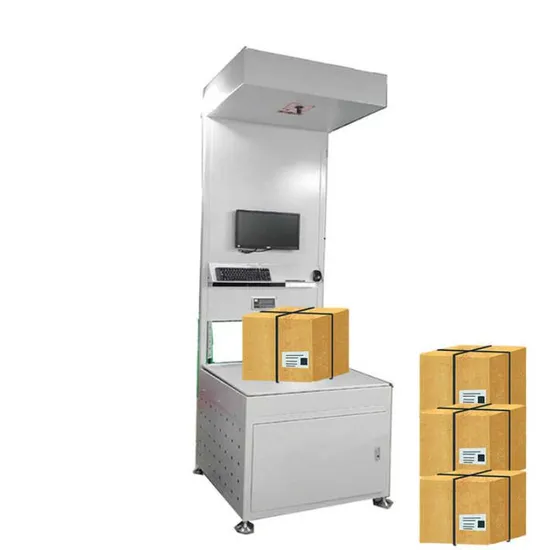

Large Platform DWS Machine Description
Scanning and weighting unit suits for sorting and registration, equipped with screen display, can used with a belt conveyor or other sorting equipment or as a standalone,
With semi-automatic operation weighing, reading code information, storage and upload, interface with other logistics systems including MEP, Erp, CRP, OA to achieve the information and have data exchange, we can get all the benefits from computer assisted manual sortation.
Large Platform DWS Machine Advantage
1. Improve work efficiency; 2. High accuracy; 3. Automatic data recording; 4. Data visualization management; 5. Diversified applications.
Large Platform DWS Machine Application
Logistics and warehousing, Manufacturing, E-commerce industry, Express delivery industry etc.
Large Platform DWS Machine Features
1. Automatic weighing function: This device is equipped with high-precision sensors and weighing systems, which can quickly and accurately measure the weight of objects and automatically record the data.
2. Code scanning function: The device supports scanning of QR codes and barcodes, which can quickly obtain relevant information about items, such as cargo codes, names, specifications, etc.
3. Volume measurement function: Through laser rangefinder and three-dimensional imaging technology, the device can measure the length, width and height of an object in real time, thereby calculating the volume of the object.
4. Data management function: The equipment is equipped with a data management system that can automatically record and store measurement results to facilitate subsequent query and analysis.
5. Interface output function: The device supports interface connection with external devices such as computers and printers, and can export and print data.
Large Platform DWS Machine Operation Mode
1. Semi-automatic operation mode 1: electronic platform scale+industrial camera
The package will be placed on the electronic platform scale to read the package weight information, industrialcamera to read the package barcode information, and stored in the system.
2. Semi-automatic operation mode 2: Belt conveyor+rolling scale+industrial camera
Put the package on the rolling scale, the belt conveyor roling scale reads the package weight information, theindustrial camera reads the package barcode information, and stores in the system; after reading the barcodeand weight information, the belt conveyor rolling scale transport the package to the next operation line.
Detail Pictures
Large Platform DWS Machine Parameter

Parameter Indicators	Equipment
Mode of Operation	Platform scale	Belt conveyor,+rolling scale	Belt conveyor+rolling scale
Type	Scanning electronic platform scale	Belt conveyor rolling scale	Belt conveyor roling scale800 x600
Overall Dimensions	L578mm*W608mm*H1980mm(1980mm-2350mm adjustable)		L908mm*W800mm*H1980mm(1980mm-2580mm adjustable)
Platform Size	L500mm*W400mm	L600mm*W420mm	L800mm*W600mm
Efficiency	Small items of 30-50 pieces/min		Large items of 30-40 pieces/min
Code Reading Accuracy	99.90%
Weighing Accuracy	±1g	±1g	±10g
Upload the Image	Support
Weighing Range	0.02kg-30kg	0.02kg-30kg	0.05kg-60kg
