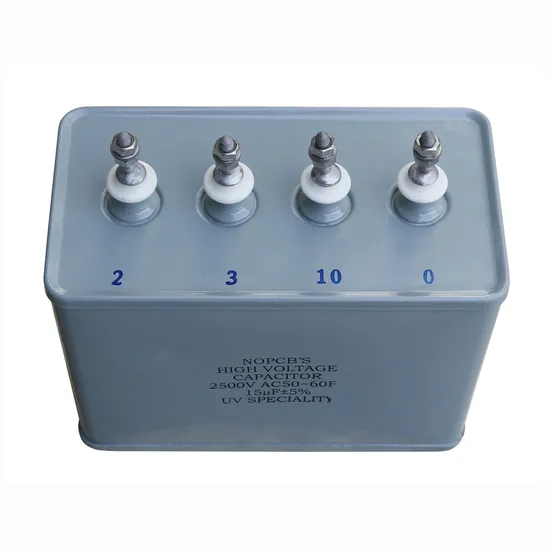

Factory Supply 15UF 2000V UV Mercury Curing Lamp Capacitor

Product Description

Product Description

UV lamp capacitors are specially developed and produced for special light sources and special lighting fixtures. This UV lamp has stable capacitor performance, small error, and is satisfactory to users.
It is usually used in conjunction with the corresponding transformer to improve power factor, compensate for current, and maintain normal operation of the lamp in a stable working state. Widely used in high-frequency, DC, AC, and pulse circuits. Feature:
UV lamp capacitors are light source products that are used in conjunction with UV transformers and UV tubes. They adopt features such as multi capacity tap integration, easy installation, easy matching, reliable performance, good moisture resistance, and long service life.

capacity (μ F)	Withstand voltage (kv)	Joint form
15	2-3	10+5 or 10+2+3
18	2-3	10+8 or 10+5+3
16	2-3	10+6 or 10+3+3
16	2-3	10+6
12	2-3	7+3+2
11	2-3	7+3+2
12	2-3	7+3+2
11	2-3	7+2+2
11	2-3	7+2+2

Technical indicators:

Capacitance deviation: C ± 5%	Electrical strength: 1.5Un/60s
Loss angle tangent value: tg ≤ 0.002	Climate category: 25/70/21
Rated voltage Un: 500~4500V.	AC Safety protection level: P2
Frequency: 50/60Hz	Reference standard: IEC61048/49 GB12747 UI810

Company Profile
Our company is a manufacturer that produces, processes, and distributes UV lamps, exposure lamps, infrared lamps, UV electronic power supplies, LED point light sources, transformers, ballasts, capacitors, triggers, lampshades, water-cooled lampshades, quartz plates, water jackets, and various special lamps.
