High Standard CE Plastic PE/PP/WPC/PVC/SPVC Conical Parallel Twin Screw Die Face Hot Cutting Granulator Granulation/ Pelletizing/Pelletized Machine
| US$20,000.00-24,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJZ65/132
Type
PVC Pelletizer Line
Plastic Processed
PVC
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Integral Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Granulation Line
WPC/PVC Granulation Line
Capacity
500kg/H
High Speed
35rpm
High Performance
24 Hours Working
Motor
Siemens
Inverter
Schenider
Barrel
Bimetallic
Gearbox
Guomao
Cutter
Alloy Steel
Transport Package
Wood
Specification
CE
Trademark
Middle tech industry
Origin
Zhangjiagang City
HS Code
84778000
Production Capacity
30unit/Year
Packaging & Delivery
Package Size
400.00cm * 200.00cm * 200.00cm
Package Gross Weight
3000.000kg
Product Description
Product DescriptionPlastic WPC/PVC/SPVC/PE/PP Conical Twin Screw Die Face Cutter Granulation/Pelletizing pipe&profile Machine Extruder
Application
This production line produces pellets by hot cutting, mainly PVC pellets.It is widely used in producing PVC granules/ pellets from the recycled material of rigid PVC, soft PVC and waste PVC, mixed material, recycled PVC powder etc.

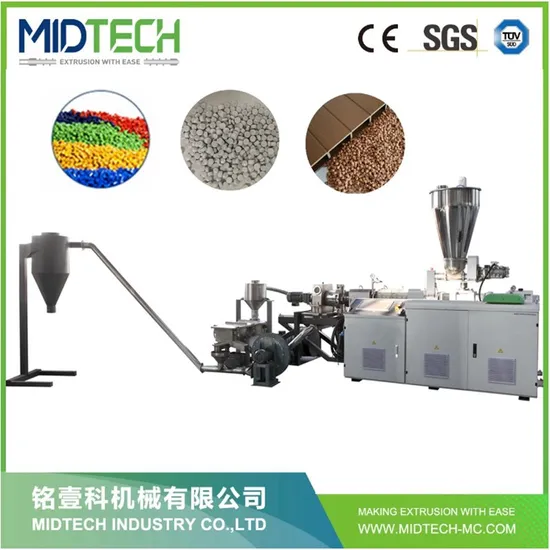

Hot cutting granulator is composed by conical screw extruder, pelletizing die, blowing system and silo.Clients can add masterbatch to produce granules with different color.
The line includes:
1.Conical twin screw extruder: SJZ51/105, SJZ65/132,SJZ80/156,SJZ92/188
2.Granulator mould; die face cutting with high quality blades and high rotary mould
3.Hot cutting device;
4.Blower&Storage hopper:big size hopper with automatic filling system
Features
1.Low price&good quality
2.Capacity 120-1000kg/h
3.Mould face hot cutting
4.CE approved
Also, the main technical parameters:
Model | Main extruder power | Capacity | Pellets diameter | Total length |
| SJSZ55/110 | 22kw | 180kg/h | 3mm | 12m |
| SJSZ65/132 | 37kw | 300kg/h | 3mm | 15m |
| SJSZ80/156 | 55kw | 450kg/h | 3mm | 15m |
| SJSZ92/188 | 110KW | 1000kg/h | 3mm | 18m |
If you need any support, please don't hesitate to call me on phone
We sincerely invite you come and visit us in China, then you can collect more information for our reliable quality and competitiive price. Company Profile
FAQ
If You Have Any Questions ,Please Contact Us Any Time, We Are Here For Your Service!!!
