Customized series liquid constant temperature thermostatic bath for thermocouple and thermistor test

Product Details

Product Description

Product Description
Products Description

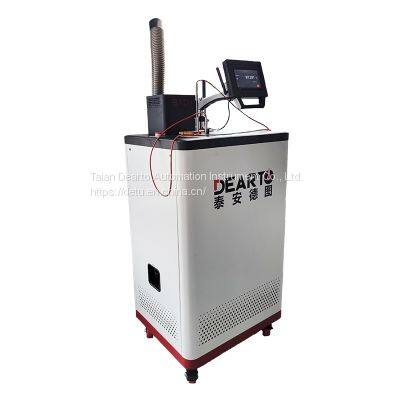

Patented technology: The thermostatic bath has patented flameproof technology.DTS series liquid thermostat is the ideal temperature constant temperature equipment for verifying and calibrating various low temperature thermocouple, industrial thermal resistance, pressure thermometer, bimetal thermometer, glass liquid thermometer and other temperature sensors. The bath body adopts the structure of lateral stirring in the design. The technical indicators of the temperature field in the working area meet the technical requirements of the temperature uniformity and temperature fluctuation of the thermostatic bath. At the same time, this series of liquid thermostatic bathes have simple operation and convenient use. Etc.
Product Features
1, The temperature field uniformity is good by using double bath side stirring mode.
2, Intelligent PID control, with excellent temperature field stability and uniformity;
3, High resolution display instrument, resolution 0.001℃.
4, Imported compressor, stable and reliable performance, optimized refrigeration system cooling speed faster.
5, RS232/RS484 communication interface selection, can achieve computer control.
6, Humanized design control is comfortable and convenient.
Product Paramenters

Product name	Hot thermostatic oil bath	Thermostatic water bath	Refrigeration thermostatic liquid bath
Model	DTS-300G	DTS-95G	DTS-01G	DTS-10G	DTS-30G	DTS-40G	DTS-60G	DTS-80G
Temperature range	70~300℃	PT+10~95℃	0~105℃	-10~105℃	-30~105℃	-40~100℃	-60~100℃	-80~100℃
Resolution radio	0.001℃
Working medium	Silicone oil	Soft water	Antifreeze oil				Absolute ethanol
Horizontal uniformity	≤0.01℃
Vertical uniformity	≤0.01℃
Temp fluctuation	±0.007℃	±0.01℃
Work area size	φ150×480mm		φ130×480mm
Volume (L)	23L		18.5L
Dimensions (mm)	660(L)×540(W)×1120(H)mm						700×590×1120
Max Power (KW)	3		2		2.8		3
Weight (Kg)	94		95		115		155
