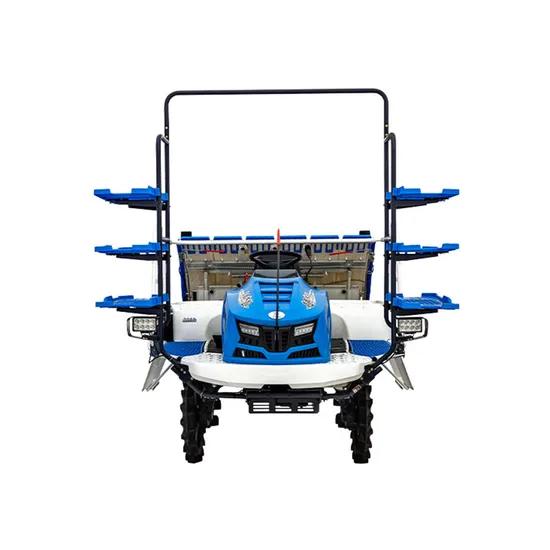

Made in China Factory Farm Machine High-Speed 6/8 Rows Riding Paddy Rice Planting Transplanter

Product Description

Model		ZG-630A(G4)	2ZG-825
Overall dimensions of the machine (mm) (length x width x height)		3150x2220x2550	3150x2500x2550
Engine	Manufacturer	Changchai Co., Ltd.	Changchai Co., Ltd.
	Model	3M78-25G411L	3M78-25G411L
	Fuel type	Diesel	Diesel
	Rated power kW	18.5	18.5
	Rated speed r/min	3300	3300
Transplanting unit	Number of working rows	6-row	8-row
	Transplanting row spacing mm	300	250
	Transplanting hole spacing mm	100,120,140,160,180,210,240	100,120,140 160,180,210,240
	Transplanting depth mm	10~55	10~55
	Number of lateral transfers	16, 18, 20, 26 (optional 14)	12, 15, 17.1 18.4 (20, 16, 14, 13 times)
	Transplanting depth mm	8~18	8~18
	Balance mechanism type	Electronic balance	Hydraulic speed change (HST)
	Transplanting frequency (single row)	0~890 holes/min	0~890 holes/min
Travel unit	Number of speed stages (stages)	Main speed: forward, reverse hydraulic stepless speed change (auxiliary speed: 2 gears; anti-sinking speed: 2 gears)	Main speed: forward, reverse hydraulic stepless speed change (auxiliary speed: 2 gears; anti-sinking speed: 2 gears)
	Walking wheel structure type (front and rear)	Explosion-proof rubber wheel (front), anti-skid rubber wheel (rear)	Explosion-proof rubber wheel (front) Anti-skid rubber wheel (rear)
	Walking wheel diameter mm (front and rear)	ф650 (front), 950 (rear)	ф650 (front), ф950 (rear)
Operation hour productivity hm²/h		0.2~0.4	0.2~0.45

Product Introduction
Equipped with an anti-sinking handle, the wheel torque can be increased by 1.4 times, and it can maintain high efficiency and stability when entering and exiting the field and passing through the ridge.
Widened pedals and a 34L large-capacity fuel tank increase the working time and ensure working efficiency.
Equipped with 4 high-power LED lights at the front and rear, it effectively extends the working time and easily copes with the rush planting season.
With 7 plant spacing adjustment gears and 4 horizontal transfer adjustment gears, it can meet the agronomic requirements of rice planting in different regions.
The efficient rotary precision transplanting mechanism can transplant rice stably and accurately, and the seedlings have a good posture when entering the ground, are not easy to scatter, have a high survival rate, and return to green quickly.
Implements
Company Profile
Changzhou Dongfeng Agricultural Machinery Group Co., Ltd(formerly known as Changzhou Tractor Factory) was founded in 1952, covers an area of 50 hectares. The company has a registered capital of 410 million yuan and total size of assets reaches 3.3 billion yuan. It has a strong manufacturing capability with the annual output of 60,000 units wheeled tractors and 20,000 units variety of other agricultural machinery & implements which ranked No.3 in the industry. And it holds the position of top for the annual production and sales of wheeled tractors below 60HP for many years. In 2023, the company achieved sales revenue of 2.617 billion yuan, export sales of 339.29 million.It covers an area of 488,800 square meters (734 mu).
In August 2003, Hangzhou Donghua Chain Group Co., Ltd. officially took over Dongfeng Agricultural Machinery Group. After the restructuring, Dongfeng Agricultural Machinery has always adhered to the business philosophy of "serving agriculture and benefiting the people", continuously adjusted its product structure, and is committed to the research and development, design, manufacturing and sales of tractors and agricultural mechanization equipment, and strives to create a national brand of Chinese agricultural machinery.
Dongfeng Agricultural Machinery is one of the first batch of national first-class enterprises, a large-scale first-class enterprise, a national recognized enterprise technology center, and a national high-tech enterprise. It is a winner of the National Quality Management Award, a vice-chairman unit of the China Agricultural Machinery Industry Association, and a vice-chairman unit of the Tractor Branch of the China Agricultural Machinery Society. It is one of the most influential enterprises in China's tractor industry and has made significant contributions to China's agricultural mechanization.
Since the restructuring, through continuous innovation and rapid developmentWith the high development speed at nearly 30% per year, DONGFENG has successfully ranked among the China backbone enterprises of Agricultural Machinery industry and also among the top team of industry. With the annual sales revenue increasing from the initial 200 million yuan to the current 3.5 billion yuan.; sales of wheeled tractors has increased from 3,000 units to about 50,000 units per year; among of exporting has increased from US$9.8 million to more than US$60 million.
Processing Equipment:
It has 453 sets of CNC processing equipment and possesses the full-process production capacity covering casting, processing, heat treatment, welding, stamping, and coating.
Assembly Line :
Power tiller(walking tractor) assembly line: production capacity 450 units/day.
Four wheel tractor assembly line: medium tractor production capacity 110 units/day, overseas production capacity 40 units/day, large tractor 70 units/day, heavy tractor 40 units/day.
Rice and wheat harvester assembly line: production capacity 45 units/day
Exhibition
Partners
Certifications
Packaging & Shipping
FAQ
Q: How can we guarantee quality?
Professional design collective.
Exquisite processing level.
High percentage of self-made parts.
Strict supplier management.
Excellent service after-sales.
Q:What is your delivery time (lead-time)?
A: Within 40 working days since the receipt of order confirmation (wheeled tractor, combine harvester & rice transplanter)
B: Within 15 working days since the receipt of order confirmation (power tiller) .
Q: What is the payment term?
A: Any form of payment, it quite depends on the credit rating of the trading countries. (L/C, T/T, D/P, O/A, D/A, Paypal)
Q: Why choose us?
Professional design collective.
Exquisite processing level.
High percentage of self-made parts.
Strict supplier management.
Excellent service after-sales.
Q: Why should I choose your farm tractor?
A: Superior performance, Reliable quality, Excellent service, High cost performance.
Q: Do you have CE and ISO9001 certification?
A: Yes.
Q: How long is your product warranty?
A: Product warranty period is 12-24 months accounting from the purchase of the products.
