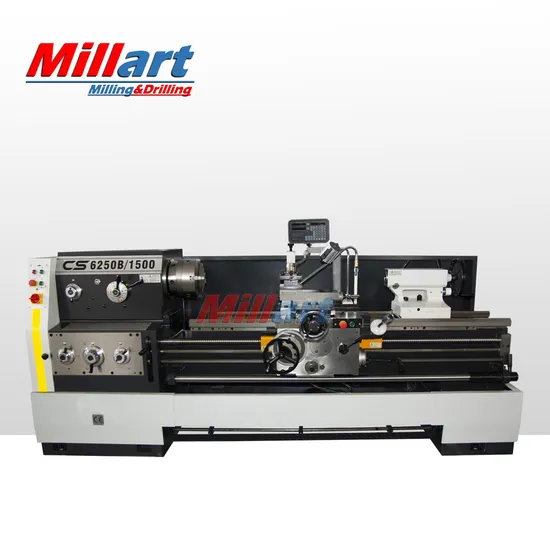

High Precision Gap Bed Lathe Machine CS6250, Metal Turning Lathe, Horizontal Lathe Machine

Product Description

Product description:

Technical parameter :
Feature :
1.Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2.Threading Inch, Metric, Module and D.P.;
3.Perform drilling, boring and groove broaching;
4.Machine all kinds of flat stocks and those in irregular shapes;
5.Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6.Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7.There are hand brake and foot brake for users to choose;
8.These series lathes operate on power supply of different voltages (220V,380V,420V) and different frequencies (50Hz,60Hz).
Technical parameter :

SPECIFICATIONS		UNIT	CS6250
Capacity	Max. swing dia. over bed	mm	500
	Max. swing dia.in gap	mm	710
	Max. swing dia. over slides	mm	300
	Max. workpiece length	mm	1000/1500/2000/3000
	Bed width	mm	400
Spindle	Spindle bore diameter	mm	52
	Type of spindle nose	no	ISO 702/II NO.8 com-lock type
	Spindle speed	rpm	24 steps 8-1400
	Spindle motor power	KW	7.5
Tailstock	Diameter of quill	mm	75
	Max. travel of quill	mm	150
	Taper of quill (Morse)	MT	5
Turret	Tool O.D. size	mm	25X25
Feed	Max. X travel	mm	145
	Max. Z travel	mm	320
	X feed range	mm/r	93 kinds 0.028-6.43
	Z feed range	mm/r	93 kinds 0.012-2.73
	Metric threads	mm	48 kinds 0.5-224
	Inch threads	t.p.i	48 kinds 72-1/4
	Module threads	πmm	42 kinds 0.5-112
	Diametricpitch threads	t.p.i.π	42 kinds 56-1/4
Others	Length	mm	2800/3300/3800/4800
	Width	mm	1150
	Height	mm	1880
G.W		kg	2775/2950/3150/3800

Standard accessories:
3-jaw chuck
4-jaw chuck
Face plate
Steady rest
Follow rest
Drive plate
Dead centers
Splash guard
Oil tray
Longitudinal mechanical stop
Work lamp
Coolant system
Foot Brake
Some tools
Optional accessories:
Tapper turning attachment
Quick change tool post
Live center
Digital readout
Thread chasing dial
Chuck guard
Tool post guard
