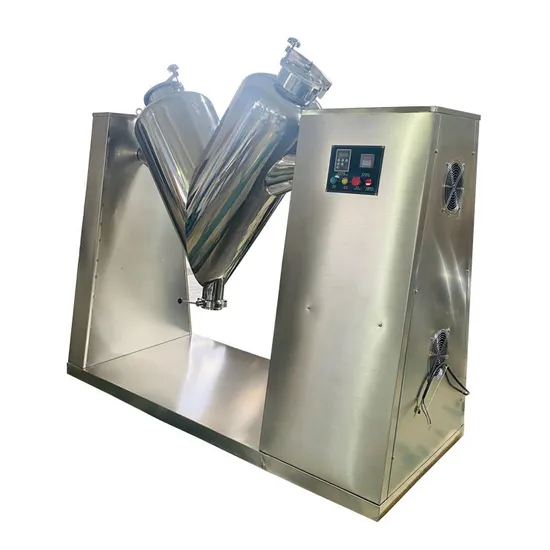

V Shape Industrial Vertical Ceramic Detergent Animal Feed Dry Powder Mixer
| US$500.00-3,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
VH3/VH6/VH10/VH14/VH20/VH30/VH50/VH100/VH200/VH300
Application
Powder, Granules, Powder
Application Area
Pharmaceutical
Certification
ISO
Condition
New
Stirring Type
Screw
Working
Diffusion Mixer
Material Processed
Chemicals, Food
Dimension(L*W*H)
Various
Warranty of Core Components
1 Year
Key Selling Points
Automatic
Capacity
40%
Machinery Test Report
Not Available
Usage
Food
Installation
Drawings Introduction
Material
304 Stainless Steel
Range of Spindle Speed(r.p.m)
1 - 12 r.p.m
Type
V Type Mixer
Core Components
Motor, Gearbox
Voltage(V)
110V, 220V, 380V
Product Type
Mixing Machine
Motor Power(Kw)
0.55-6.6
Mixer Type
V-Mixer
Layout Type
Verticle
Operating Type
Cycle Operating
Warranty
1 Year
Mixing Drum Shape
V Mixer
Transport Package
Export Wooden Case
Trademark
Jincheng Merchinery
Origin
Jiangsu, China
HS Code
8479820090
Production Capacity
15 Set/Sets Per Month
Packaging & Delivery
Package Size
41.00cm * 57.00cm * 61.00cm
Package Gross Weight
23.500kg
Product Description
| Model | Barrel volume(L) | Working volume(L) | Rotating speed(r/min) | Overall size(mm) | Power(KW) | Net weight(kg) |
| VH3 | 3 | 1.2 | 0-60 | 590*285*480 | 0.06 | 13 |
VH6~VH14
| Model | Barrel volume(L) | Working volume(L) | Rotating speed(r/min) | Overall size(mm) | Power(KW) | Net weight(kg) |
| VH6 | 6 | 2.4 | 24 | 650*305*720 | 0.37 | 36 |
| VH10 | 10 | 4 | 24 | 710*325*700 | 0.37 | 48 |
| VH14 | 14 | 5.6 | 28 | 820*365*840 | 0.55 | 52 |
| Model | Barrel volume(L) | Working volume(L) | Rotating speed(r/min) | Overall size(mm) | Power (KW) | Net weight(kg) |
| VH14 | 14 | 5.6 | 28 | 930*375*920 | 0.55 | 72 |
| VH20 | 20 | 8 | 28 | 1000*420*880 | 0.55 | 82 |
| VH30 | 30 | 12 | 23 | 1120*405*1050 | 0.75 | 94 |
| VH50 | 50 | 20 | 20 | 1300*460*1200 | 1.1 | 150 |
| VH100 | 100 | 40 | 18 | 1560*705*1500 | 1.5 | 180 |
| VH200 | 200 | 80 | 15 | 1965*860*1750 | 1.5 | 300 |
| VH300 | 300 | 120 | 13 | 2220*920*1950 | 2.2 | 520 |
| VH500 | 500 | 200 | 12 | 2660*1250*2400 | 2.2 | 600 |
| VH1000 | 1000 | 400 | 12 | 3220*1500*2840 | 6.6 | 1000 |
1. Customer send us an inquiry.
2. Confirmmachine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us boutQuality , Service, Market Feedback & Suggestion.And we can do better
About after sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation
