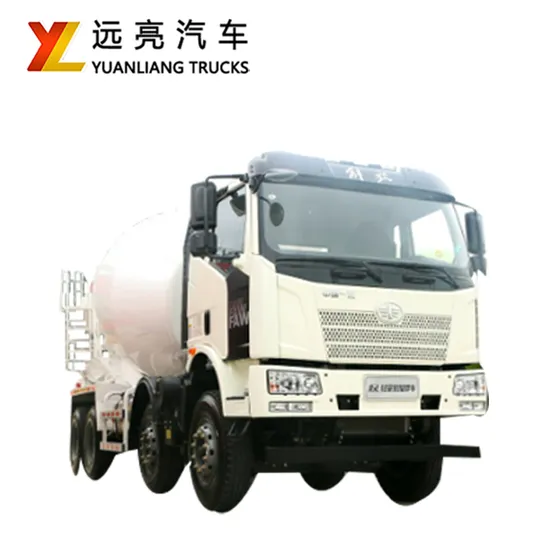

High-Performance Expert FAW J6l 325HP 8X4 7.8cbm Concrete Mixing Truck for Road Construction
| US$84,999.00-86,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YLL500060-1
Certification
ISO9000, CCC, TS16949, EEC, RoHS
Transmission Type
Manual
Emission Standard
Euro 4
Displacement
9
Payload
20T
Fuel
Diesel
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Color
Customizable
Dimensions
9800×2550×3950(mm)
Vehicle Weight
31000(Kg)
Curb Weight
13750(Kg)
Load Capacity
17120,17055(Kg)
Wheelbase
1900+2950+1350,2000+2850+1350(mm)
Suspension
1400/2200(mm)
Front and Rear Axle Load
6500/6500/18000
Number of Axles
4
Front Track
1914/1914,1928/1928,1950/1950,1985/1985,2050/2050(
Rear Track
1878/1878,1900/1900(mm)
Tire Size
11.00r20
Transport Package
Nude
Specification
9800× 2550× 3950(mm)
Trademark
FAW
Origin
China
HS Code
870540
Production Capacity
5000
Packaging & Delivery
Package Size
980.00cm * 255.00cm * 395.00cm
Package Gross Weight
13750.000kg
Product Description
Specification parameters| Overall dimensions | 9800×2550×3950(mm) | Rated load capacity | 17120,17055(Kg) |
| Gross Vehicle Weight | 31000(Kg) | ABS | standard configuration |
| Curb weight(kg) | 13750(Kg) | Front/rear suspension | 1400/2200(mm) |
| Approach/departure angle | 21/18(°) | Front and rear Axle Load | 6500/6500/18000 |
| Wheelbase | 1900+2950+1350, 2000+2850+1350(mm) | Number of axles | 4 |
| Maximum speed | 89(km/h) | Number of spring pieces | 10/10/11,8/8/11,3/3/11,9/9/11, 11/11/10,8/8/10,9/9/10,12/11/10, 4/4/4,4/4/5,3/3/4,10/9/11,10/9/10, 12/12/11,12/12/10,4/4/10 |
| Number of tires | 12 | Tire Size | 11.00R20,12R22.5,10.00R20, 11R22.5 |
| Front track | 1914/1914,1928/1928, 1950/1950,1985/1985, 2050/2050(mm) | Rear track | 1878/1878,1900/1900(mm) |
| Engine | |||
| Engine model | Displacement(L) | Power (kw)/ horsepower (PS) | Fuel |
| CA6DK1-32E6 | 7146 | 239/325 | Diesel |
| CA6DL6-38E68 | 8570 | 283/384 | Diesel |
| CA6DL6-36E68 | 8570 | 268/364 | Diesel |
| CA6DK2-35E65 | 7751 | 257/349 | Diesel |
| CA6DK2-32E65 | 7751 | 238/323 | Diesel |
| CA6DL6A38E68 | 8570 | 283/384 | Diesel |
| CA6DL6B36E68 | 8570 | 268/364 | Diesel |
| CA6DK2A35E65 | 7751 | 257/349 | Diesel |
| CA6DK2A32E65 | 7751 | 238/323 | Diesel |
| others | |||
| The agitation capacity is 7.8 cubic meters; Total tank length: 5,170 mm, Maximum diameter of 2,300 mm; The tank installation Angle is 14 degrees; The material of the side guard is Q235, Side protection and sub-frame welding; Material of the rear lower guard is Q235, bolting, Section size: 12,050mm, The ground height is 490mm; Install a driving recorder with satellite positioning function; ABS anti-lock braking system , Model number: CM4XL; The corresponding fuel consumption value of the CA6DK1-32E6 engine is 37.4L/100km, The corresponding fuel consumption value of CA6DL6A38E68 and CA6DL6B36E68 engine is 36.78L/100km, The corresponding fuel consumption value of CA6DK2-35E65, CA6DK2-32E65, CA6DK2A35E65 and CA6DK2A32E65 engines is 36.45L/100km; Change the face chassis with the chassis; Selected front cover, wide body bumper and secondary pedal; Aluminum alloy rim, air filter is optional with the chassis, Door handle can be optional with the chassis, fender, Without the Chinese faW logo, This model can be equipped with on-board ETC device, Installation position of optional urea tank, air unit and air cleaner along with the chassis, Optional U-type post-processing structure and installation position, Optional trim panels on both sides of the rear cab | |||
