Semi Automatic 20 Liter Pet Blowing Machine

Product Description

Semi Automatic 20 Liter pet blowing machine
Product Description

What is Blow Molding Machine?
Blow Molding Machine is one kind of two step stretch type bottle making plant.
Blow Molding Machine is suitable to produce plastic bottles based on PET raw material.
Blow Molding Machine is widely used to produce carbonated soft drinks
bottles, mineral water bottles, cooking oil bottles, medicine bottles, cosmetic bottles, wide mouth Jars and hot filling juice bottles ect.

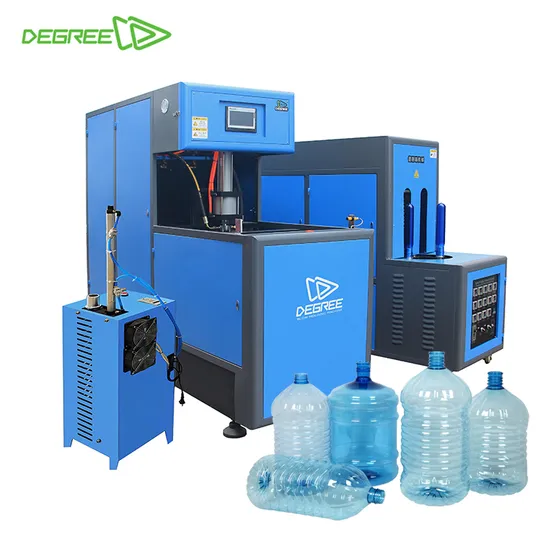

DEG-20L Semi automatic bottle blow molding machine can produce PET containers including the bottles for kinds
of wine, drink,soybean, vinegar, and pesticide (less than 20Liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine ,It has high pressure protection with the feature of precisely removing mould ,The machine has no noise ,It is easy to maintain ,It's the equipment for producing PET bottles.
Detailed Photos

Product Parameters

Model	DEG-20L (One Blower, One Heater)
Clamping Force	220KN
Clamping Stroke	450 MM
Max. Stretching Stroke	660MM
Number of Cavities	1 Cavity
Theoretical Output	80-100 BPH(7-25L, 1cav)
Max. Mold Thickness	400MM
Voltage Standard	380v/3PH/50Hz
Total Power (Full Loaded)	20-25KW
Max. Container Volume	20L
Neck Diameter Range	50-120mm
Max. Container Diameter	400mm
Max. Container Height	600mm
Low Air compressor	10Bar
High Air compressor	30-40Bar
Blow molding machine	2100*700*1900mm
Preform Heater	2200*700*1600mm
Net Weight	2000kgs

Certifications
Packaging & Shipping
Company Profile
FAQ
Q1 :What kinds of product you supply?
A1: Blow Molding Machine, Extrusion Molding Machine ,Preform Mould ,Cap Mould, Blow Mould,Filling Machine, Packaging Machine, Plastic Products, etc
Q2: How to tell your enquiry ?
A3: Contact us by email,phone call, fax,instant Messenger (Trade manager , Whats app, Skype) and let us know your inquiry.
Q3: How to choose suitable machine?
A3: Tell us your requirement, and we will advise you.
Q4: Do you have technical support after we purchased your machine?
A4: - We will provide video technical support,online support.
- If you need,we can also arrange our professional technical to go aboard to your factory,they will help and teach you how to install and maintenance the machine.
