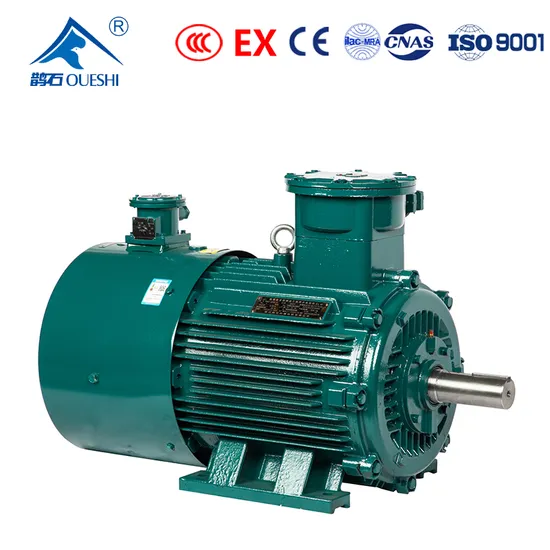

Variable Frequency Explosion-Proof Three-Phase Asynchronous Electrical Motor Variable Frequency Adjustable Speed AC Motor

Variable Frequency Explosion-Proof Three-Phase Asynchronous Electrical Motor Variable Frequency Adjustable Speed AC Motor

US$500.00 1 Piece (MOQ)

Basic Info.

Species
Explosion-Proof Three-Phase
Casing Protection
Explosion-Proof Type
Number of Poles
2
Starting Mode
Direct on-line Starting
Certification
ISO9001, CCC, Explosion-Proof Certificate
Brand
Queshi
Protection Level
IP55/IP65
Installation Mode
B3/B5/B35
Frequency
60Hz
Transport Packaging
Cartons, Wooden Boxes, Wooden Shelves
Insulation Grade
F/H
Case Material
Aluminum Shell, Iron Shell
Explosion-Proof Signs
Ex dB II B T4 GB
Use Temperature
Minus 20-80 Degrees
Cooling Mode
IC411
Transport Package
Packing in Wooden Cases
Specification
Cast iron casing/Pure Copper Core/Cold-rolled sili
Trademark
Zhejiang Queshi Explosion proof Motor Co., Ltd
Origin
Zhejiang Province, China
HS Code
0101101010
Production Capacity
50000

Product Description

YBX4 High Efficiency FlameproofThree Phase Asynchronous Motor
PRODUCT OVERVIEW
YBBP series explosion-proof frequency conversion speed regulation special three-phase asynchronous motors this series of motors are frequency conversion speed regulation special three-phase asynchronous motors and electronic frequency converter joint use, can achieve speed 150 ~ 2750 RPM (4 pole) range of stepless speed regulation, is those who have a wide range of stepless speed requirements of the mechanical equipment of the ideal power. Widely used in transportation, metallurgy, textile, printing and dyeing, chemical, mining, fans, pumps and other industries. Its electrical performance and installation size are manufactured according to the national standard JB/T7118, and in line with international IEC standard.

Product qualification certification
Such as product qualification requirements before placing an order to consult customer service
Zhejiang Queshi Explosion Proof Motor Co., Ltd. Factory shoot
Model RatedOutput Speed Input Current Rated current IN Efficiency PowerFactor Rated Tower(Tn) TST/TFL IST/TFL TM/TFL Noise
YBX4-80M1-2 0.75 2875 380 1.62 83.5 0.83 2.5 2.2 8.5 2.3 62
YBX4-80M2-2 1.1 2885 380 2.32 85.2 0.83 3.65 2.2 8.5 2.3 62
YBX4-90S-2 1.5 2890 380 3.06 86.5 0.85 4.97 2.2 9.0 2.3 67
YBX4-90L-2 2.2 2895 380 4.36 88 0.86 7.32 2.2 9.0 2.3 67
YBX4-100L-2 3 2900 380 5.84 89.1 0.87 9.88 2.2 9.5 2.3 74
YBX4-112M-2 4 2915 380 7.64 90 0.88 13.2 2.2 9.5 2.3 77
YBX4-132S1-2 5.5 2925 380 10.3 90.9 0.88 18 2.0 9.5 2.3 79
YBX4-132S2-2 7.5 2925 380 13.9 91.7 0.89 24.7 2.0 9.5 2.3 79
YBX4-160M1-2 11 2940 380 20.2 92.6 0.89 35.7 2.0 9.5 2.3 81
YBX4-160M2-2 15 2940 380 27.4 93.3 0.89 48.9 2.0 9.5 2.3 81
YBX4-160l-2 18.5 2940 380 33.6 93.7 0.89 60.3 2.0 9.5 2.3 81
YBX4-180M-2 22 2945 380 39.8 94.0 0.89 71.3 2.0 9.5 2.3 83
YBX4-200L1-2 30 2970 380 54.2 94.5 0.89 96.5 2.0 9.0 2.3 84
YBX4-200L2-2 37 2970 380 66.6 94.8 0.89 119 2.0 9.0 2.3 84
YBX4-225M-2 45 2970 380 80.8 95.0 0.89 145 2.0 9.0 2.3 86
YBX4-250M-2 55 2970 380 98.5 95.3 0.89 177 2.0 9.0 2.3 89
YBX4-280S-2 75 2980 380 134 95.6 0.89 241 1.8 8.5 2.3 91
YBX4-280M-2 90 2980 380 160 95.8 0.89 289 1.8 8.5 2.3 91
YBX4-315S-2 110 2985 380 196 96.0 0.89 353 1.8 8.5 2.3 92
YBX4-315M-2 132 2985 380 235 96.2 0.89 423 1.8 8.5 2.3 92
YBX4-315L1-2 160 2985 380 284 96.3 0.89 513 1.8 8.5 2.2 92
YBX4-315L2-2 185 2985 380 328 96.5 0.89 593 1.8 8.5 2.2 92
YBX4-315L3-2 200 2985 380 355 96.5 0.89 641 1.8 8.5 2.2 92
YBX4-355M1-2 220 2990 380 381 96.5 0.91 705 1.6 8.5 2.2 100
YBX4-355M2-2 250 2990 380 433 96.5 0.91 801 1.6 8.5 2.2 100
YBX4-355L1-2 280 2990 380 484 96.5 0.91 897 1.6 8.5 2.2 100
YBX4-355L2-2 315 2990 380 545 96.5 0.91 1009 1.6 8.5 2.2 100
YBX4-3551-2 355 2990 380 613 96.5 0.91 1138 0.9 8.6 1.8 104
YBX4-3552-2 375 2990 380 655 96.5 0.91 1202 0.9 8.6 1.8 104
