HDPE PP Sheet Film Electro-Fusion Sleeve Plastic Board Extrusion Machinery

Product Description

HDPE PP Sheet film Electro-Fusion Sleeve Plastic Board Extrusion Machinery Product Description
It consists of SBJZ-series plate &sheet special-purpose single screw extruder SJZ-series conical twin screw extruder Or SJ-series parallel twin screw extruder; Equipped with auxiliary downstream accessories and moulds, it can produce: PE, and other board & sheet.
The machinery unit consists of extruder, Screen changing device, melt pump, T-die, 3-rollr or multiple-roller calender, cooling device, edge cutter, Haul-off system, plate cutter winder, electrical control system.
Others, The working principle is the 3 states of the hot-plastics at different temperatures: The pushing force of the screw change the physical stat from glass state to high elastic state, then glutinous-and-fluid sate, it comes out from the slim gap of the die, the rest of the procedures are calendar, cooling-shaper, edge-cutter, Haul-off, cutter, winder.
Features of the machinery unit: High grade alloy structural steel ( 38CRMOALA) made material barrel& screw and mould, after nitriding treatment. It gets high hardness, corruption and long service life. Choice T-die the flowing passage is designed for easy flowing of thehout any detaining, and the product thickness is even, For the calender, large conical slot is designed, the cooling quality inside the roller is good, and the temperature synchronization

Sheet Width 1000-1600mm, thickness 1-30mm

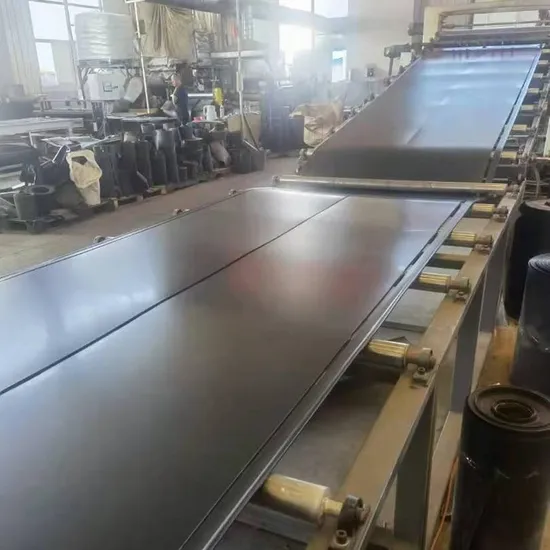

HDPE Sheet extrusion line used for Electro-fusion sleeve making click for detail
Product Parameters
plate & sheet size: Width: 300MM-700MM thickness0.2MM-45MM: Output rate: 80-1800KG. /H. The machinery unit is the best solution for plate & sheet production.

(Modle)	(width)	Thickness(MM)	Speed(m/min)	Outputr(kg/h)
SBJZ -1000	1000	1-5,5-30	0.1-6	150-200
SBJZ -1600	1600	1-5, 5-30	0.1-6	200-450
SBJZ -2000	2000	1-5,5-30	0.1-6	300-1000
SBJZ -2400	2400	1-5, 5-30	0.1-6	300-1200
SBJZ -3000	3000	1-5	0.1-6	300-1500
SBJZ -4000	4000	1-5	1-6	300-1500
SBJZ -6000	6000	1-5	1-6	300-1500

Sheet Width 2000-4000mm, thickness 1- 30mm
Sheet Width 4000-6000mm, thickness 1- 5mm
Clients case

International Delivery
Company Profile
Qingdao Huashida Machinery Co., Ltd is one of the top manufacturers of plastic extrusion machines in China, specialized in dealing with Steel pipe in terms of anticorrosion and insulation technology. Our pipeline equipment is applied to Oil/gas/water transportation project and gain good affirmation.
HUASHIDA Factory located in Qingdao High & New Technology Industrial Area- Qingdao Huashida industrial Park, covers area of about 34000 square meters. We are a high qualified and experienced teams for reaching& designing, manufacturing and site operation for plastic extrusion equipment.
Up to now, We have successfully entered the oversea markets of Russia, Iran, UAE, India, Belarus, Kazakhstan, Denmark, Saudi Arabia, Uzbekistan, Taiwan, Korea, Turkey and son on. And obtained more than 20patents and industry certifications at home and abroad. Our pipeline production line is nearly 200 sets served in the world.
HUASHIDA company We have reliable products of different models because of our powerful making capacity. We can satisfy our customer's special need because of our outstanding R&D and design capacity. We can offer our user with timely and convenient technique support because of our perfect after-sales service.
