Horizontal CNC Thread. Worm Whirlwind Milling Machine

Horizontal CNC Thread. Worm Whirlwind Milling Machine

US$10,000.00-100,000.00 1 set (MOQ)

Basic Info.

Model NO.
SMK-350
Structure
Horizontal Bed-Type
Milling Cutter Type
Whirling Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Color
Customized
Max. Diameter of Milling Blank
350mm
Max. Length of Workpiece
1000mm
Max. Milling Angle
40deg
Spindle Speed
0.1-50rpm
Milling Head Speed
10-750rpm
Bed Width
600mm
CNC System
Seimens 828d
Positioning Accuracy
0.01mm
Transport Package
Standard Package
Specification
CE ISO
Trademark
TIMAC
Origin
China(Mainland)
HS Code
8459619000
Production Capacity
500sets/Year

Product Description

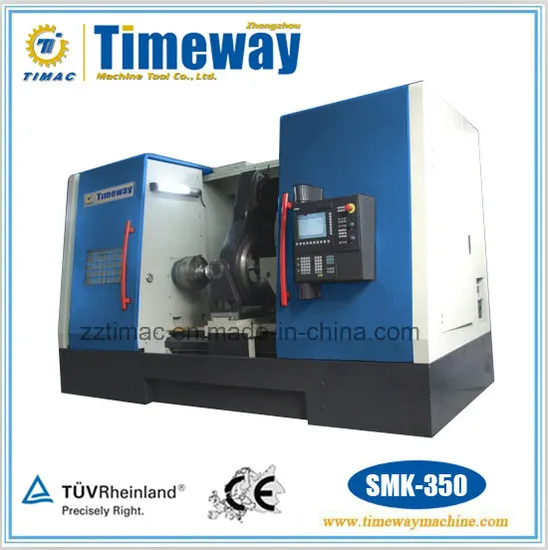

CNC Horizontal Thread/Worm Whiralwind Milling Machine
SMK-350
Features:
The machine is designed a highly efficient processing equipment for axisymmetrical spiral parts.
Layout of horizontal lathe, precision-ground high hardness guideway, high-rigidity wide bed; Adpot SIEMENS CNC system to realize automatically cutting by four-axis linkage.
Cyclone milling cutting inside, high milling efficiency(6-20times of turning), spindle transmission chain is short, transmission accuracy is high, roughness is to Ra0.8um, Full-enclosed protection.
Technical Parameter
Specification Unit SMK-350
Max. turning diameter over bed mm Φ1060
Max. turning diameter over carriage mm Φ720
Max. length of workpiece mm 1000
Max. diameter milling cutter blank mm Φ350
Max. milling helix angle deg ±40°
Milling cutter speed range rpm 10-750
Spindle taper - C11
C-axis speed range rpm 0.1-50
Bed width mm 600
Tailstock quill diameter mm Φ100
Tailstock taper - MT5
CNC system - SIEMENS 828D
X-axis servo motor torque N.m 11
C-axis servo motor torque N.m 111
Z-axis servo motor torque N.m 16
Milling head motor power kw 7.5
X/Z-axis min. feed unit mm 0.001
X/Z-axis positioning accuracy mm 0.01
Coolant type of tool - Nature
Processing accuracy of screw-pitch - IT7
Roughness of workpiece surface um Ra1.6-0.8

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe CNC Lathe
CNC Machining Center
CNC Milling Machine
Grinding Machine Milling Machine
Special Use Lathe Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
