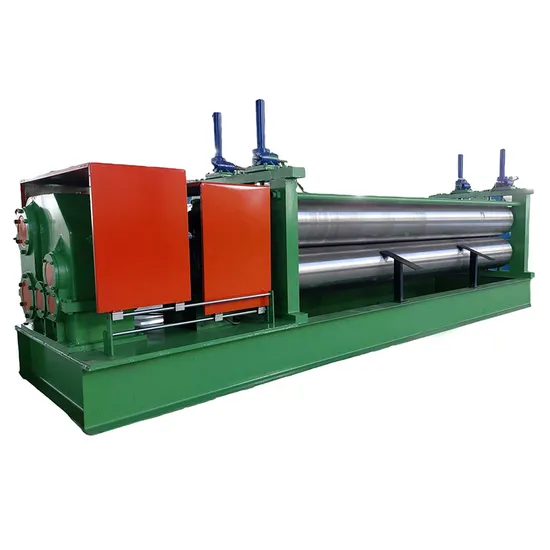

Horizontal Barrel Corrugated Roofing Sheet Metal Thin Steel Making Machine Easy to Operate Roll Forming Machine From Zhongke

Product Description

Roofing panel corrugated sheet roll forming machine metal fully automatic 30m/min high speed High speed roof wall panel corrugated sheet roll forming machine
1. Description Of Corrugated Sheet Roll Forming Machine
The metal corrugated roof and wall panel is widely used for commercial and residential metal buildings, associated with residential and commercial. Corrugated Sheet Roll Forming Machine could be customized designed for its production.
Our Corrugated Roof Sheet Roll Forming Machine are very popular, we have exported to many countries, such as India, Thailand, Indonesia, Philippines, Dubai, Rwanda, Australia, Canada, etc.
It's also named metal roofing galvanized aluminum corrugated steel sheet making machine colored steel wall roof panel cold roll forming machine, metal roofing galvanized aluminum corrugated steel sheet making machine colored steel wall roof panel cold roll forming machine, steel roof sheet corrugating tile making building material roll forming machinery machine, etc.
If you have requirements for production speed, power, voltage and brand, please explain in advance.
2. Technical Details Of Corrugated Sheet Roll Forming Machine

Machine Specifications
Weight	About 4.6tons
Size	About 6.5m x 1.2mx1.3m(length x width x height)
Color	Main color: bule or as your need
	Warning color: yellow
Suitable Raw Material
Material	GI PPGI GL PPGL
Thickness	0.3-0.8mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	22
Diameter of forming rollers shafts	70mm
Roll Forming Speed	15m/min
Forming rollers material	45# steel, coated with chromed treatment
Cutter material	Cr12MOV, with quenched treatment
Controlling system	PLC
Electric Power requirement	Main motor power: 4kw
	Hydraulic unit motor power: 4kw
Electric voltage	According to customer's requirement

3. Main Components Of Corrugated Sheet Roll Forming Machine

Manual Decoiler	1 Set
Feeding Table	1 Set
Roll Forming Unit	1 Set
Post Cutting Unit	1 Set
Hydraulic Station	1 Set
PLC Control System	1 Set
Reveiving Table	1 Set

4. Production Flows Of Corrugated Sheet Roll Forming Machine
Decoiler → feeding table (sheet metal is put by guiding platform) → main forming machine → Hydraulic cutting system → Receiving table
5. Advantages Of Our Corrugated Sheet Roll Forming Machine
· More than 10 engineers and More than 10 designers with more than 10 years experience
· We have completed production system. And have high precious CNC grinders and milling machines,to make the rollers and shafts of the machine.
· Our machine's warranty period is 12 months and and we supply the technical support for the whole life of the equipment.
6. Application Of The Corrugated Sheet Roll Forming Machine
This machine is widely used in the production of the metal roof sheets and wall panel. our machines are exported to many countries: Rwanda, Thailand, Philippines, Dubai, USA, South Africa, Peru, Russia, Saudi Arabia, Malaysia, Indonesia, etc.
7. Product photos Our Corrugated Sheet Roll Forming Machine

8. FAQ
Q. What your company advantages?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q: How to visit our company:
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3. Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q. How to get a quotation?
1. Give me the profile drawing and the thickness of your material it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own profile drawing, we can recommend some models according to your local market standard.
Product description
Our Machine Advantage
1.Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2.Good service: we provide the technical support for whole life of our machines.
3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4.Easy operation:All machine cotrolling by PLC computer controlling systerm.
5.Elegant apperance:Protect the machine from rust and the painted colour can be customized
6.Reasonable price:We offer the best price in our industry.
Our Machine Technical Parameter

No.	Item	parameter
1	Machine size	8000*1650*1400mm
2	Machine weight	5500kg
3	Machine power	7.5kw
4	Hydraulic engine	2.2kw
5	Roll speed	0-18m/Min
6	Roll stations	16
7	Roller material	45# Steel
8	Effective width	820mm
9	Feeding width	1000mm
10	Voltage	380V 50Hz 3PH/Customized
11	Material thickness	0.3-0.6mm/Customized
12	Control System	Sneider/Delta/Customized

Our Machine Main Accesories
Main Product
Assembling Process
Our Machine Assembling Process
Packaging & Shipping
Company Information
Tag: 1220mm Corrugated Sheet Forming Machine, 4 Meters Corrugated Metal Roofing Machine, Corrugated Metal Roofing Machine Galvanized Steel
