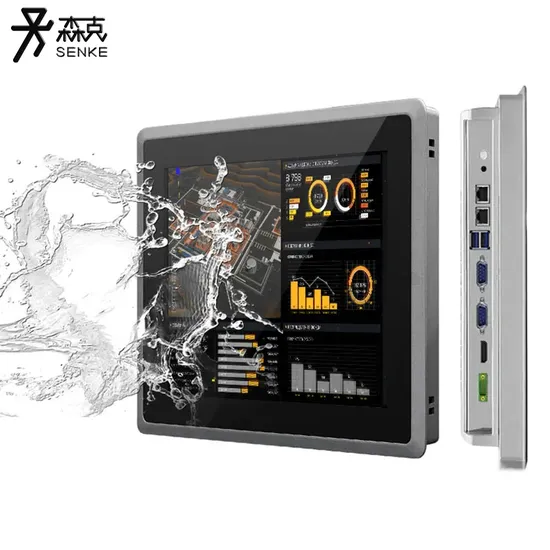

10.4 12.1 15 17 19 Inch Capacitive Touch Screen Fanless Industrial Embedded PC Industrial Panel PC IP65 Waterproof Industrial Display
Basic Info.
Interface
DisplayPort, DVI, Ethernet Interface, HDMI, Serial Interface, USB, VGA
Operating Temperature
-20℃ to 60℃
Refresh Rate
60Hz
Resolution
1920 x 1080
Screen Size
16-20′′
Touch Technology
Capacitive Touch
Type
Touch Screen Display
Waterproof
IP65 Waterproof
Size
10.4, 12.1, 15, 17, 19 Inch
Contrast Ratio
900:1
Screen Ratio
4:3
Touch Point
10 Point Touch
Response Time
Less Than 5ms
Heat Dissipasion
Fanless Aluminum Fin Heat Dissipation
Touch Screen
Touch Screen
Installation
Wall Mounted, Desktop, Embedded
CPU Type
Windows I3/I5/I7
Transport Package
Foam Carton or Custom Wooden Case
Trademark
Senke
Origin
Guangzhou, China
HS Code
8521909090
Production Capacity
10000
Packaging & Delivery
Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
10.000kg
Product Description
Product Description| 10.4 12.1 15 17 19 Inch Capacitive Touch Screen fanless industrial embedded pc Industrial Panel PC IP65 Waterproof Industrial Display |
Product Parameters
| Senke Industrial PC | SK-K10DR | SK-K12DR | SK-K15DR | SK-K17DR | SK-K19DR | |
| Motherboard | Confirmuration | J6412,J1900,J4125,i3-7100U,i5-7200U,i7 | ||||
| Interface | WiFi,3/4G module | 802.11b/g/n(optional), Support3g/4g(optional) | ||||
| HDMI | 1*HDMI output | |||||
| USB | 4*USB3.0 | |||||
| Network | 2*RJ45 with 1000 Base-T | |||||
| Com | com(RS485)*2 | |||||
| Power supply | 1*DC lock phoenix terminal, Support 9-36V | |||||
| Audio output | 1*3.5mmaudio | |||||
| Other | 8*GPIO(optional) | |||||
| Display | Screen type | 10.4 LCD | 12.1 LCD | 15 LCD | 17 LCD | 19 LCD |
| Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | |
| Size(W*H) | 210.4*157.8mm | 245.7*184.3mm | 304.1*228.1 mm | 376.3*301.1mm | 376.3*301.1mm | |
| Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 | |
| Brightness | 200cdm2 | 200cdm2 | 250cdm2 | 250cdm2 | 250cdm2 | |
| Brightness Optional | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | 1000cdm2 | |
| Screen ratio | 4:3 | 4:3 | 4:3 | 5:04 | 5:4 | |
| Structure | Front and back cover | Aluminum | ||||
| Craft | Glass frame paste, aluminum die casting | |||||
| Color | Black, grey | |||||
| Heat dissipasion | Fanless aluminum fin heat dissipation | |||||
| Panel indicator light | Power state, hard disk state | |||||
| Whole size | 281*228*56.8mm | 315*254*56.8mm | 304*294*55.3mm | 404*341*56.3mm | 445*375.6*59.3mm | |
| Touch screen | Type | Projected capacitive touch screen | ||||
| Touch point | 10 point touch | |||||
| Physical Resolution | 4096x4096 | |||||
| Response time | <5ms | |||||
| Accuracy | <2.5mm | |||||
| Transparency | ≥90% | |||||
| Protection | The surface is coated with 1:1 PVC protective film | |||||
| Others | Working environment | -20ºC~70ºC; Humidity: 10%~90% | ||||
| Storage environment | Temperature: -40ºC~80ºC; Humidity: 10%~90% | |||||
| Installation ways | Embedded,VESA100*100mm | |||||
| Power consumption | 24W | 25W | 33W | 34W | 37W | |
| Accessories | Manual | User Manual, certificate of qualification, warranty card | ||||
| Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) | |||||
| Adapter | Power adapter | |||||
