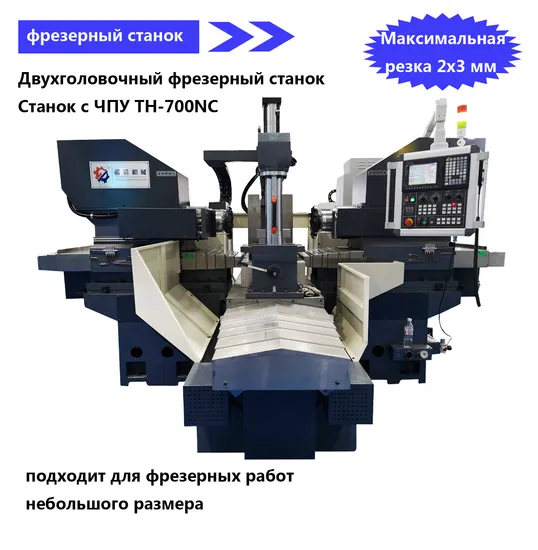

Gooda CNC Duplex Head Milling Machine Max Cutting Capacity 2× 3.0mm

Product Description

Achieve the main function: CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
Optional spindle driving spindle driving by Gear type
Better Stability,More Efficiency
Specifications of TWIN-HEAD CNC MILLING MACHINE TH-460NC:

Items	Name	Specification
GOODA TWIN-HEAD CNC MILLING MACHINE TH-700NC		TH-700NC
Cutting capacity	Control axis number	4
	Cutting capacity mm	2*1.5
	Cutting width mm	30-700
Worktable	Dimensions mm	500*500
	Max loading weight	1200
Spindle	Spindle speed(Infinitely variable speeds) rpm:	50-500
	Spindle power KW	2*9
	Spindle taper	NT50
	Cutting diameter mm	250/300
X axis	X/Y/Z axis motor power	2.5/2.5/3.0
Y axis	X/Y/Z Max feed speed m/min:	8000/8000/8000
Z axis	X/Y/Z Max cutting speed	6000/6000/6000
Accuracy	Squareness mm/300mm	0.015
	Accuracy for dimension mm/300mm	0.015
Tank capacity	Hydraulic oil tank L	80
	Lubrication oil tank L	3
Power	Power	AC380V 40KVA
Net weight	Machine net weight KG	11000

Configuration:

ITEM	SPECIFICATIONS	QUANTITY
Main	CNC Twin head milling machine NC Controller FANUC 0i-MD Model:TH-700NC(Belt type)	1 set
Standard configuration	1.Servo motor rotary worktable 2. Screw type automatic cleaning 3. Tools and tools car 4.Closed house sheet metal 5. Full set of cushion/clamp 6. Workpiece automatic measuring 7. 90˚Workpiece positioning device 8. Air pressure system, blowing and automatic measurement 9. Working Light 10. Working status indicator light 11. Air cooling system electric box 12. Hydraulic system, single hydraulic cylinder clamping 13. Man-machine conversation system, automatic protection, diagnosis, display	1 set 2 sets 1 set 1 set 23 pcs 1 set 1 set 1 set 1 set 1 set 1 set 1 set 1 set
Accessories	1. Face cutter 300mm (R&L) 2. Transformer (380V to 220V) 3. Scrap car	2 sets 1 set 1 set
Remark: 1. Packing: PE bag cover inside+ Plywood box + Steel beam frame. 2. Install and training salary: USD200/day/person. (2 person and 2 days) 3. Above offer without any commission. 4. Above offer without any import tax and local transportation charge. 5. Machine is equipped 45˚ and 135˚ chamfering function. 6. Foundation will be done by buyer. 7. English manual (installation/ operation/ maintain).

You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting. *Gooda will help you reduce setting time and reduce running cost,to increase efficiency. The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Detailed Photos:
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards Benefits: Has obtained dozens of patent technology and software copyright, and has successively passed the ISO 9001 quality management system certification and CE product safety certification of the European Union TUV certification, national high-tech enterprise evaluation and other honors After sale service, deliver high reliability with an emphasis on efficient maintenance service all the time. Maintain part-to-part consistency. we will help you at once when there is a problem. Besides, we will check machine regularly. Machines come wired for USA electricity or your local electricity. We supply expert installation and training. Save you time and money and increase your productivity by high speed milling. Maximize tool life assuring your production will pay dividends for many years. About us:
We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC Duplex Milling Machine, CNC Vertical Milling Machine,CNC Gantry Grinding Machine, 5-Axis High Speed Machining Center , CNC High Speed Saw Machine and CNC Chamfering Machine. Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.
According to following standards: 1.TUV ISO 9001 certificate2.TUV certificate3.SGS certificate4.CE certificate
5.More than 39 patents certificate6.National High-tech Enterprises certificate GooDa Machinery focuses on the field of CNC duplex milling machine, and has maintained rapid development since its establishment. Its independent brands: GooDa machinery,YaGoo machinery and JJR machinery have become the most influential brands in the industry. The design and positioning of the product is guided by the customer's needs of users in different scales and fields, and realize personalized customization, so as to create the highest economic benefits for customers. Main products: CNC duplex milling machine,CNC high speed sawing machine, CNC Vertical milling machine,CNC Gantry milling machine, CNC Machining Center, CNC three Axis Chamfering machine,CNC Planar Grinding machine,Plate flipping machine.The application scope of the products includes mold steel,moldbase, aluminum plate,die processing and other metal cutting.After years of research and development and innovation, the products are at the leading level in terms of processing accuracy,machine stabilitym,Ergonomic design and other technical performance. With the continuous improvement of market demand, GooDa has launched six side processing solutions, indirectly promoting the development of China's mold industry.
FAQ: 1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment IN GOODA ,THE FUTURE OF PROCESSING!
