Stainless Steel Bellow Gate Valve

Product Description

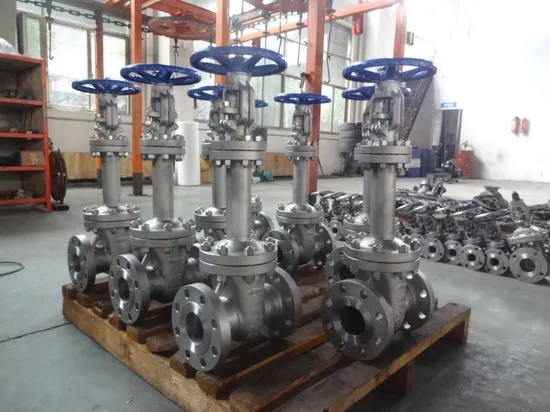

Stainless steel bellow gate valve
TECHNICAL DATA Valve Designed to API - 600 / BS - 1414 Valve Tested to API - 598 / BS - 5146 Flanged End as per ANSI - B 16.5 Face to Face as per ANSI - B - 16.10 ACCESSORIES Pneumatic Actuators Electric Actuators Floor Columns By-Pass Piping NOTES Optional Stellited Wedge & Seat Sizes above 250 mm have two piece Bonnet DIMENSIONS: Valve Sizes(Inch) 15 20 25 40 50 65 80 100 150 200 250 300 350 400

Face To Face	#150	108	118	127	165	178	131	203	229	267	292	330	356	381	406
	#300	140	153	165	191	246	241	283	305	403	419	457	502	762	838
Flange Dia.	#150	89	98	108	127	152	178	191	229	279	343	406	483	533	597
	#300	92	118	124	156	165	191	210	254	318	381	445	521	584	648
Raised face Dia.	#150	35	43	51	73	92	105	127	157	216	270	324	381	413	470
	#300	35	43	51	73	92	105	127	157	216	270	324	382	413	470
Flange PCD.	#150	60	70	79	98	121	140	152	191	241	298	362	432	476	540
	#300	67	83	89	114	127	149	168	200	270	330	387	451	514	572
Flange Thk.	#150	11	13	14	18	19	22	24	24	25	29	30	32	35	67
	#300	14	16	18	21	22	25	29	32	37	41	48	51	54	57
Raised face Thk.	#150	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
	#300	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6	1.6
No. Of Holes/ Dia.	#150	4/16	4/16	4/16	4/16	4/19	4/19	4/19	8/19	8/22	8/22	8/25	8/25	8/29	8/29
	#300	4/16	4/19	4/19	4/22	8/19	8/22	8/22	8/22	12/22	12/25	12/29	12/32	12/30	12/32

When bellows globe valve is open, the bellows is compressed, the adverse sealing pair of valve stem and valve cover limits stroke of valve stem to prevent that deformation of bellows exceeds its own limits and causes damage. 3. The valve stem of bellows globe valve adopts double seal structure of bellows and stuffing to guarantee no leakage sealing at valve stem. 4. The valve is particularly applicable to industrial pipeline for flammable, explosive, toxic, strong penetrability, nuclear radiation, nuclear power project and ship confined space and other special medium and severe conditions.
Application:Industry, Powerstations, Flue gas purification plant, processing technology, gas supply,vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology,district heating, thermal oil applications, general plant manufacturing, etc. (other applications on request)
Medium :Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.(other flow media on request)
Materials :A105,LF2,F5,F11,F22,F304,F316,F316L,F321,F347
Bellows materials: SS304, SS316,SS316L,SS310, Hastelly C.
Size range :1/2"-2"
Class: 150LB-2500LB
Temperature :≤425 ºC
Technical specification:
Design: API 602,BS5352,ANSI B16.34
Connection ends:
a.Scoket welded ends conform to ANSI B16.11;GB/T1751
b.Screw ends conform to ANSI B1.20.1;GB/T7306
c.Butt-welded ends conform to ANSI B16.25;GB/T12224
d.Flanged ends conform to ANSI B16.5;GB/T79
Test & inspection: API 598; GB/T13927
Structure feature:
Bolted bonnet, outside screw and yoke.
Welded bonnet,outside screw and yoke.
Body materials: A105, F11,F22,304,304L,316,316L
Features and benefits
A compact but extremely sturdy design for high pressure-temperature service.
Solid CoCr alloy wedge (optional) ensures low friction and long service life.
For Class 1500 valves and for steam service, seats are seal-weldedto the body.
Packing rings are precompressed to 4000 psi to provide a high integrity seal.
For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (Body/bonnet threads and strength-weld).
Fully guided wedge reduces wear on seating surfaces.
Repairable 2-piece stem drive.
Parallel slide gate valves also available.
Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
is open, the bellows is compressed, the adverse sealing pair of valve stem and valve cover limits stroke of valve stem to prevent that deformation of bellows exceeds its own limits and causes damage. 3. The valve stem of bellows gate valve adopts double seal structure of bellows and stuffing to guarantee no leakage sealing at valve stem. 4. The valve is particularly applicable to industrial pipeline for flammable, explosive, toxic, strong penetrability, nuclear radiation, nuclear power project and ship confined space and other special medium and severe conditions.
Application:Industry, Powerstations, Flue gas purification plant, processing technology, gas supply,vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology,district heating, thermal oil applications, general plant manufacturing, etc. (other applications on request)
Medium :Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.(other flow media on request)
Materials :A105,LF2,F5,F11,F22,F304,F316,F316L,F321,F347
Bellows materials: SS304, SS316,SS316L,SS310, Hastelly C.
Size range :1/2"-2"
Class: 150LB-2500LB
Temperature :≤425 ºC
Fig No. :Z33041/F
Technical specification:
Design: API 602,BS5352,ANSI B16.34
Connection ends:
a.Scoket welded ends conform to ANSI B16.11;GB/T1751
b.Screw ends conform to ANSI B1.20.1;GB/T7306
c.Butt-welded ends conform to ANSI B16.25;GB/T12224
d.Flanged ends conform to ANSI B16.5;GB/T79
Test & inspection: API 598; GB/T13927
Structure feature:
Bolted bonnet, outside screw and yoke.
Welded bonnet,outside screw and yoke.
Body materials: A105, F11,F22,304,304L,316,316L
Features and benefits
A compact but extremely sturdy design for high pressure-temperature service.
Solid CoCr alloy wedge (optional) ensures low friction and long service life.
For Class 1500 valves and for steam service, seats are seal-weldedto the body.
Packing rings are precompressed to 4000 psi to provide a high integrity seal.
For welded bonnet valves, the bonnet is threaded in and torqued to an engineered torque value and the body bonnet joint is strength-welded, offering double protection against leakage. (Body/bonnet threads and strength-weld).
Fully guided wedge reduces wear on seating surfaces.
Repairable 2-piece stem drive.
Parallel slide gate valves also available.
Optional design available with double packing, leak-off connection, live-loading and a packing blowout for easy removal of old packing.
