Used Tire Rasper Machine Rubber Granulator Tire Crusher

Product Description

Used Tire Rasper Machine Rubber Granulator Tire Crusher
Product Description

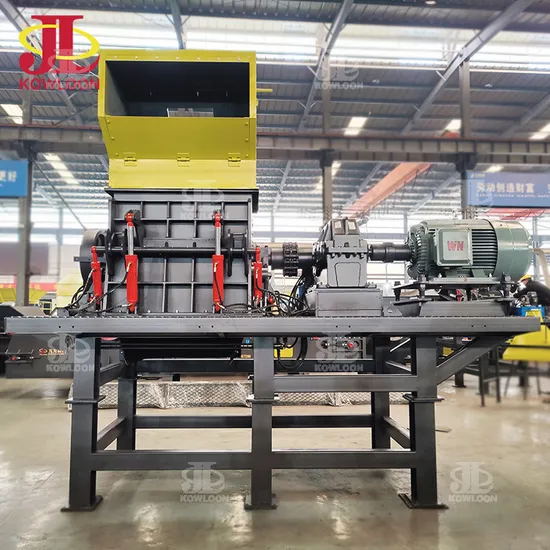

JLRS Granulator Machine
Kowloon Machinery JLRS granulator machine, designed to process maximum 300x300mm plastic or rubber pieces into 10-15mm granules, sometimes rubber or plastic composted with steel wires, JLRS granulator equipped with claw blade with teeth, is able to squeeze steel wires off and separate them via magnet separator above discharge conveyor, steel wire separating purity 98%.
Application
Waste tire shreds, steel composited rubber seal, natural gas pipeline shreds, scrap cables…etc

Model	JLRS800	JLRS1000	JLRS1200	JLRS1500
Main motor	90kw	110kw	132kw	160kw
Feed particle size	≤50mm	≤50mm	≤50mm	≤50mm
Mesh size	Φ10-Φ15mm	Φ10-Φ15mm	Φ10-Φ15mm	Φ10-Φ15mm
End product size	10-15mm	10-15mm	10-15mm	10-15mm
Working capacity	500-750kg/hour	750-1000kg/hour	1000-1250kg/hour	1250-1500kg/hour
Moving knife quantity	36	48	36	48
Dead knife quantity	12	16	12	16
Dimension(L*W*H)	1650*1700*2300mm	2000*1750*2300mm	2300*1770*2300mm	2750*1800*2300mm
Weight	4800kg	5200kg	5600kg	6000kg
Feed conveyor (LxW)	8000x650mm,4kw	8000x800mm,4kw	8000x1000mm,4kw	8000x1200mm,4kw

Details ShowFeatures1. Frequency conversion control, automatic stop feeding when overload. 2. Double-edged blades, each blade could be used twice3. Blades made of H13, high hardness, anti-wear , longer working life. 3. Hydraulic assistant system for helping open and changing screen and blade maintenance. 4. With pulse dust collector and enclosed feed hopper, low dust when work inside room.Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer CooperationZhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
