PE Recycling Line Equipment with Wash Line System for Plastic Granules

Product Description

State-of-the-Art Plastic Recycling Washing Line: Engineered by Wenzhou Wandun Machinery Co., Ltd., this PE Plastic Recycling Machine with Enhanced Washing Line is meticulously designed for unparalleled efficiency in the granulating process. Experience superior performance, exceptional reliability, and cutting-edge technology tailored to meet all your plastic recycling needs. Transform your recycling operations with unmatched precision and consistency, ensuring optimal results every time.
Product Description

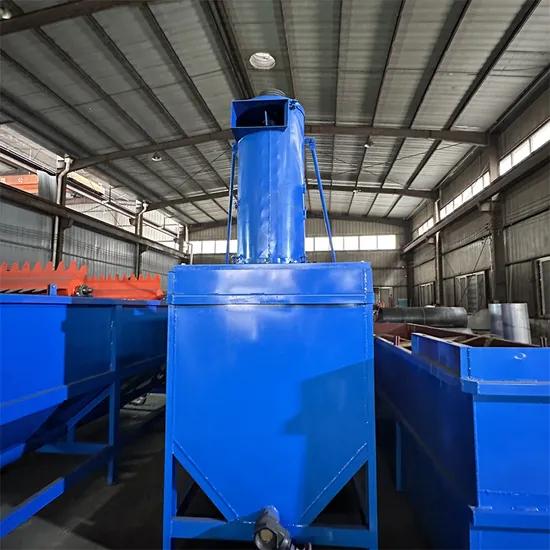

The plastic recycling washing system is a cornerstone of Kitech machinery's recycling series. This ingeniously designed, modular system is tailored to handle rigid plastics and bottles. It efficiently processes various types of plastics such as PE, LDPE, HDPE, PC, PS, and ABS, ensuring optimal soft recycling.
Kitech offers customizable module combinations designed to meet your specific requirements and material conditions. With the capability to handle a wide range of raw materials, Kitech provides production lines ranging from 300 to 10,000 Kg. Choose from economy to high-level configurations to match your production needs.


Introduction:

Type	WT500	WT100	WT2000	WT3000
Capacity(kg/h)	400-500	800-1000	1600-2000	2500-300
Dimension(L*W*H)	35*10*5	50*12*6	70*12*6	120*20*6
Steam consumption(kg/h)	0-150	0-200	0-300	0-600
Chemical consumption(kg/h)	0-3	0-5	0-10	0-20
Energy consumption(kwh)	175	198	306	550
instalation power(kwh)	210	330	498	810
*** (person /shift)	3-5	3-8	3-10	3-12

Main Technical Variables:
Belt Conveyor:
Heavy-duty type, equipped with a robust gear motor;
Thoughtfully designed side walls to prevent material spillage;
Crusher:
Precisely engineered with sharp and powerful blades;
Enclosed cutting chamber to securely contain materials;
Externally adjustable knives for exceptional ease of use;
Shredder:
Specially designed hopper to effectively prevent material ejection;
Innovative four-way rotating knives with unique holders;
Extremely robust pedestal bearing housings for enhanced durability;
External mounting of bearing pedestal designs for easy maintenance;
Screw Conveyor:
Constructed with wear-resistant stainless steel screws for longevity;
Triple sealing with an advanced external bearing design;
Washing Tank:
Equipped with a double station discharge valve at the bottom;
Variable speed control facilitated via inverter;
Heavy-duty washing unit to separate materials with different densities efficiently;
Friction Washer:
Rotor and blades crafted from wear-resistant steel for superior performance;
Rotor with dynamic balance treatment, achieving precision of ±3-5g;
Active material washing to safeguard downstream units effectively;
Centrifugal Dryer:
Rotor with dynamic balance treatment, ensuring precision of ±3-5g;
Mild circular screen designed in a four-piece polygon configuration for optimal drying;
Washer/dryer housing constructed with robust stainless steel welded construction;
Squeezing Dryer:
Heavy-duty shaft and blade for high-efficiency drying;
Double hydraulic press units for enhanced drying capabilities;
Motorized screw squeezing mechanism for superior performance;
Hot Air Pipe Dryer:
Pipeline constructed with precision stainless steel welding;
All material-contacting parts are high-grade stainless steel;
Efficient hot air drying system for rapid and effective drying;
Storage Buffer:
Seamlessly connects with the pelletizing process for smooth operation;
Large storage capacity ensures uninterrupted operation;
Electrical Cabinet
Equipped with international brand low voltage components for reliability;
Double circuit safety relay for enhanced operational protection;
Intelligent and modular PLC controlling system for seamless and efficient operation.
