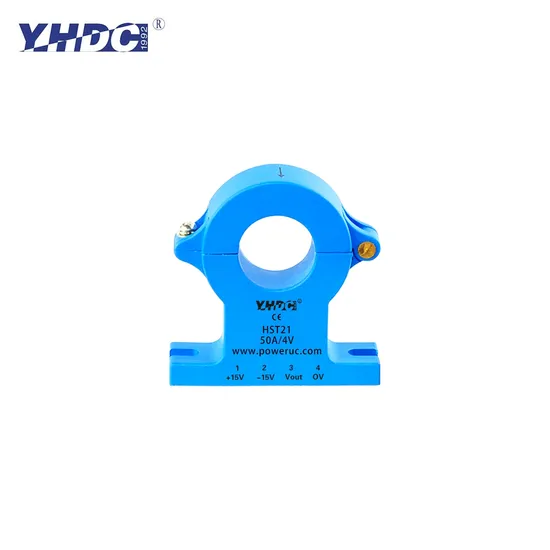

Yhdc High Accuracy 100A-600A Input ± 4V Ouput AC/DC Hall Effect Split Core Current Sensor Hst21

Product Description

Product Description
YHDC Hall Effect Split Core Current Sensor HST21 Open loop split core type,Sub-plate installation,terminal output. Detect DC,AC and pulse current,High insulation between primary side and the vice side circuit.

Product features •Light weight •Low power consumption •Good linearity •No insertion loss •Fast response time •Good anti-interference ability

Product application •Railway •Metallurgical •Welding machine •Robot and Motor •Inverter power supply •Variable frequency governor •Uninterrupted power supply and communication power supply

Electrical parameter

Rated input	±100A	±200A	±300A	±400A	±500A	±600A
Input measurement range	±150A	±300A	±450A	±600A	±750A	±800A
Rated output	±4V
Accuracy	1%
Linearity	1%
Supply voltage	±12V/±15V
Current consumption	≤±16mA
Load impedance	≥10KΩ
Zero offset voltage	≤±15mV
Response time	≤5μs
Weight	77g
Operation temperature	-10~+70ºC
Storage temperature	-25~+70ºC
Band width	DC~25KHz
Delectric strength	2.5KV 50Hz 1min

Dimensions and Diagram: Instructions for use: 1 .According to the connection mode of correct connection 2 .The direction shown by the arrow is positive 3 .With hole measurement, response time and following the speed for the best 4 .Faulty wiring can lead to product damage and output uncertainty
Safe operation: *Please read this specification carefully before use. *When you need to move the product, please be sure to disconnect the power and all the connected cables. *If found shell, devices attached to the fixed parts, wire, or have any damaged, please immediately deal with hidden dangers. *If there is any doubt about the safe operation of the equipment, the equipment and the corresponding accessories should be closed immediately, and the fastest time for troubleshooting.
