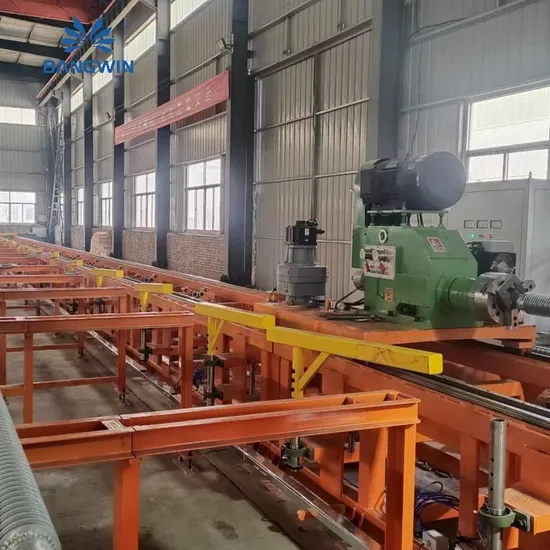

All-in-One Hf Welded Tube Welding System

All-in-One Hf Welded Tube Welding System

US$8,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
BW
Core Components
Motor
Key Selling Points
High Productivity
Base Tube Diameter Range
7~11mm; 12~32mm; 15~45mm
Outer Diameter of Finned Tube
25mm/64mm/77mm
Base Tube Material
Aluminum, Carbon Steel, Copper
Fin Material
0.3~0.45mm
Finned Tube Length
0-15m
Spindle Rotating Speed
80rpm, 100rpm, 120rpm
Transport Package
Wooden Case
Specification
Customized
Trademark
BANGWIN
Origin
China

Product Description

Product Description

-Tool holder and tool holder body adopt advanced dual-circular-key structure, big torque withstanding, accurate and reliable displacement.
- Tool holder adopts split type design, convenient for blade debugging, cleaning & fixing.
- Blade spindle bushing adopts special taper sliding bearings brings max. bushing utilization.
- Universal joints and spindles are of spline linking; And coolant cooling tank is separate to main rolling machine.
- Special extruding blade design, high efficient, long blade life.
SPECIFICATIONS OF EXTRUDED FIN TUBES
Base tube material
carbon steel, stainless steel, copper
Base tube diameter range
Φ15~45mm
Fin material
aluminum or copper
Extruded fin thickness
0.3~0.7mm
Extruded fin height
max. 16mm (aluminum) / 8mm (copper)
Max. OD of finned tube
Φ77mm (aluminum) / Φ50mm (copper)
Applicable fin pitch
FPI 7, FPI 8, FPI 9, FPI 10, FPI 11
Max. fin tube length
15m
