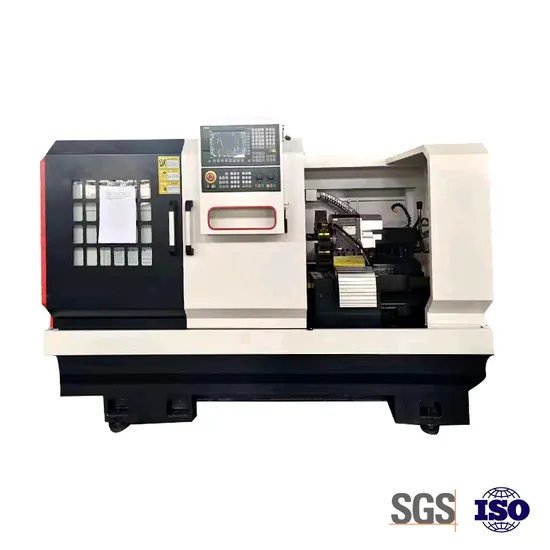

High Quality CNC Lathe Factory Direct Sale Taiwan CNC Milling Machine

Product Description

CNC Lathe Features
High Quality CNC Lathe1.45 degree slant bed cnc lathe2.High accuracy Taiwan linear guideways3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.5.The first one is suitable for bearing and gear processing .6.The second type is suitable for high speed and jhigh precision processing.7.Customers could choose any type of them8.Screw pre-stretching structure9.Gang type tool post10.Optional turret
CNC Lathe Technical Parameter:

MODEL				TCK36A	TCK46A	TCK56A	TCK66A
Max swing over bed			mm	φ360	φ460	φ560	φ660
Max swing over cross slide			mm	φ140	φ170	φ360	400
Distance between centers			mm	300	350	500	600
Max turning length			mm	300	350	500	700
Screw specifications	X			2510	3210	3212	4010
	Z			3210	3210	3212	4010
Spindle hole			mm	φ48	φ56	φ65	Φ85
Bar capacity			mm	φ41	45	φ50	Φ75
Spindle nose				A2-5	A2-5	A2-6	A2-8
Spindle speed			rpm	4000	3500	3500	2800
Tailstock diameter			mm	φ65	φ70	φ74	φ100
Tailstock taper			No	MT4	MT5	MT5#	MT5
Tailstock travel			mm	200	200	250	500
Electric turret type			station	8	8	8	8
motor torque		X	N.M	6	7.5	10	10
		Z	N.M	6	7.5	10	10
X travel			mm	170	240	200	280
Z travel			mm	350	400	550	600
Minimum setting unit			mm	0.01	0.001	0.001	0.001
Main motor			KW	5.5	5.5	7.5(servo)	11
weight			Kg	2400	3000	4250	5000
dimension			mm	2200x1600x1850	2500x1700x1890	2950×1860×1850	3700x2000x2000

Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
