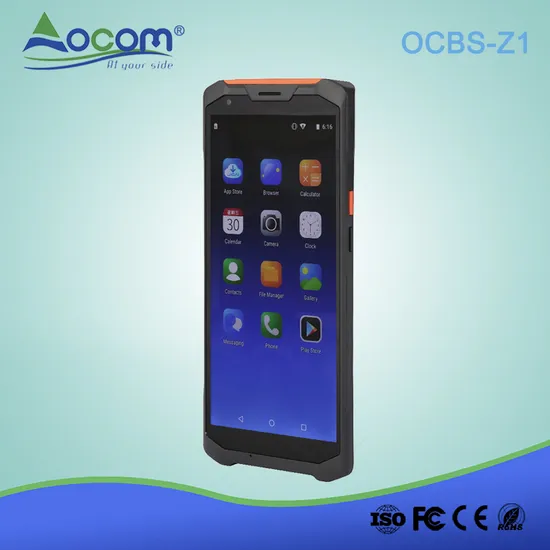

Ocbs-Z1 5.99 Inch Handheld Rugged Inventory Touch Screen Android Scanner PDA
Basic Info.
Model NO.
OCBS-Z1
OS
Android
Memory Capacity
≥1GB
Applications
Industrial Grade PDA
CPU Type
Rockchip
Internet Connection
WI-FI
Classification
Ultra High Frequency
Display
5.99inch. HD+ 1400*720 IPS Screen
Backlight
LED Backlight
Expansions
2*SIM, 1*TF (TF-Card Can up to 32GB ROM)
Battery
Rechargeable Li-ion Polymer, 4.3V, 4000mAh
Speaker
1W/8r
Sensor
G- Sensor, Light Distance Sensor, Fingerprint
Scanner
1d&2D Barcode Scanner Engine
Camera
8 Megapixel Camera Auto-Focus with LED Flash+2 Meg
Port1
USB Type C
Specification
21*12*8CM
Trademark
OCOM/NEUTRAL/OEM
Origin
Shenzhe, China
HS Code
8471606000
Production Capacity
1000PCS/Week
Product Description
Handheld Android Industrial Data Terminal(M/N:OCBS-Z1)
Features: Cortex-A53 4-core, 1.5GHz CPU 2G RAM+16G ROM 5.99inch. HD+ 1440*720IPS Screen Support 4G Communication Rechargeable li-ion polymer 4.2V, 4000Ah Battery 8 megapixel camera auto-focus with LED flash 2 megapixel front camera Support GPS+AGPS Support 2.4G&5Gwifi and Bluetooth4.0 BLE Type C connector for charging and data Specification
| Physical characteristics | |
| Dimension | 170mm(H)x79mm(W)x15mm(D) |
| Display | 5.99inch. HD+ 1400*720 IPS Screen |
| Side Key | Power key (lock screen key) +scan key + volume increase + volume decrease |
| Backlight | LED backlight |
| Expansions | 2*SIM,1*TF (TF-card can up to 32GB ROM) |
| Battery | Rechargeable li-ion polymer, 4.3V, 4000mAh |
| speaker | 1W/8R |
| Sensor | G- Sensor,Light Distance Sensor,Fingerprint |
| Scanner | 1D&2D barcode scanner engine |
| Barcode type | 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN/ ISSN39, 39 (full code),code32 trioptic39, cross 25, industry 25, matrix 25, kudeba (NW7), 128, ISBT128,code93 code11,MSI/Plessey,UK/Plessey,UCC/EAN128 (gs1-128),China Post code, China finance code, gs 1 databar (formerly RSS) series 2D: PDF41 7, MicroPDF41 7, QR code, micro qr code, DataMatrix, Hanxin code, Aztec code, GS1 composite |
| Camera | 8 megapixel camera auto-focus with LED flash+2 megapixel front camera |
| Port | USB Type C |
| Performance | |
| CPU | Cortex-a53 4-core, 1 .5GHz |
| Operating System | Android 8.1 |
| Storage | 2GB RAM+16GB ROM |
| User environment | |
| Operating Temp. | -0ºC to 45ºC |
| Storage Temp. | -20ºC to 70ºC |
| Humidity | 5%RH to 95%RH(non-condensing) |
| Development environment | |
| SDK | HHW Software Development Kit |
| Language | Java |
| Environment | Android Studio or Eclipse |
| Data communication | |
| WWAN | GSM/GPRS/WCDMA/TD_ SCDMA/TDD_ _LTE/FDD-LTE |
| WCDMA | WCDMA B1(2100)MHZ B5(850)MHz B8(900)MHz |
| GSM | 850/900/1800/1900 |
| TDSCDMA | B34,B39 |
| TDD-LTE | B38,B39,B41,B42 |
| FDD-LET | B1,B3,B5,B7,B20 |
| WLAN | IEEE 802.11 a/b/g/n2.4GHz&5GHz |
| Bluetooth | Bluetooth v2.1,V3.0,V4.0+BLE |
| GPS | GPS&AGPS |
| NFC | 14443A,14443B |
